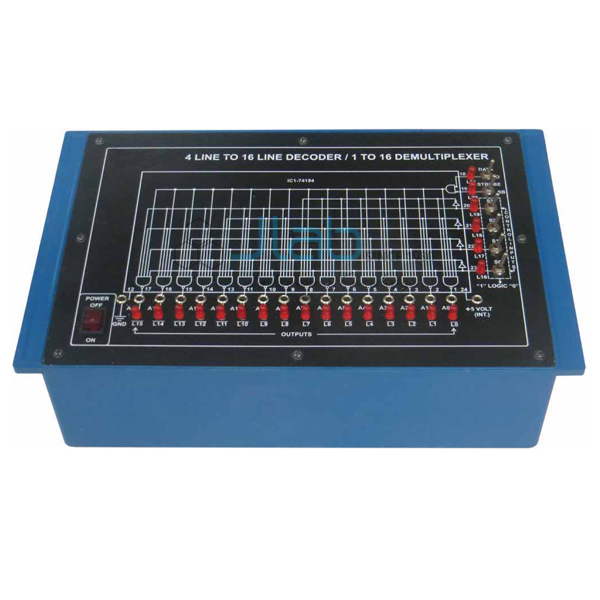

4 Line to 16 Line Decoder
Product Code : JA-DET-1525
4 line to 16 line Decode
This Training Board gives a better understanding of decoding 4 lines to 16 lines.
It also explains the phenomena of Demultiplexing with one input signal and sixteen outputs using four control signals.
It gives an idea to sequence among a number of states.
The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students
Object:
To demonstrate the operation of a 1 line to 16 line demultiplexer
To demonstrate the operation of 4 line to 16 line decoder
To demonstrate how 4 line to 16 line decoder can be used to sequence among any number of states, between one and fifteen.
(This is called a programmable sequencer with 4 binary inputs and 16 outputs)
Features:
The board consists of the following built-in parts :
+5V D.C. at 200mA, IC regulated power supply internally connected
1 to 16 Decoder/Demultiplexer IC
LEDs (22 No’s) for visual indication of status
SPDT (6 No’s) switches for logic selection
Adequate no. of other Electronic Components
Mains ON/OFF switch, Fuse and Jewel light
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
