Axial Fan Demonstration Unit
Product Code : JA-FMAHLE-9968
Axial Fan Demonstration Unit
Specification:-
Transparent ducts give visibility of the fan in operation.
Capable of being linked to a PC via a dedicated interface console (an essential accessory).
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises.

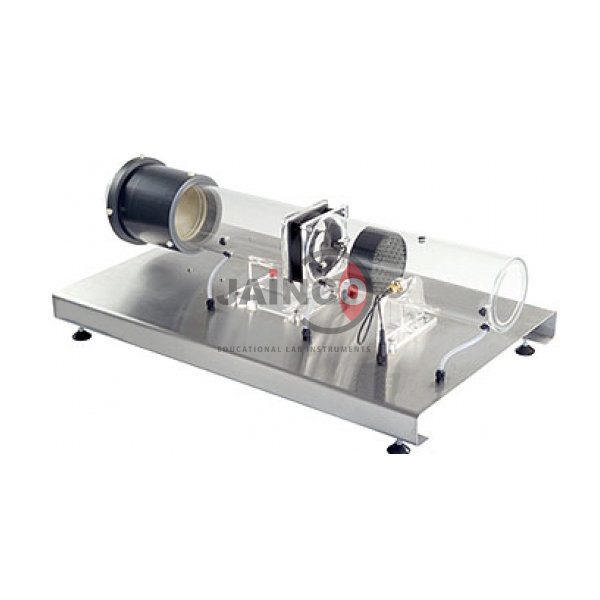

A small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
Full theoretical back-up together with a student questions and answers session.
Equipped with electronic measurement sensors for fan head pressure, flow-rate (via orifice plate), fan speed and air temperature.
Facilities for logging, processing and displaying data graphically.
Description:-
A calibrated orifice plate is used on the discharge to measure the air flow rate.
Electronic sensors measure the pressure head developed across the fan, the pressure across the orifice plate (and hence the flow rate), the rotational speed of the fan and the air temperature.
An axial fan, mounted on a stainless steel plinth.
Transparent air inlet and air outlet ducts allow the fan construction to be clearly observed.
A manually operated adjustable aperture allows the air flow rate to be varied.
The fan speed is controlled by modulated dc supply, complete with current sensing to allow the power drawn by the fan to be measured.
Technical Specification:-
Max Flow Rate: 38 l/s typical
Motor Power rating 5W
Max Head: 0.06 KPa
Max fan speed 2700rpm
