Chromatography Columns with Sintered Disc
Product Code : JA-CC-1595

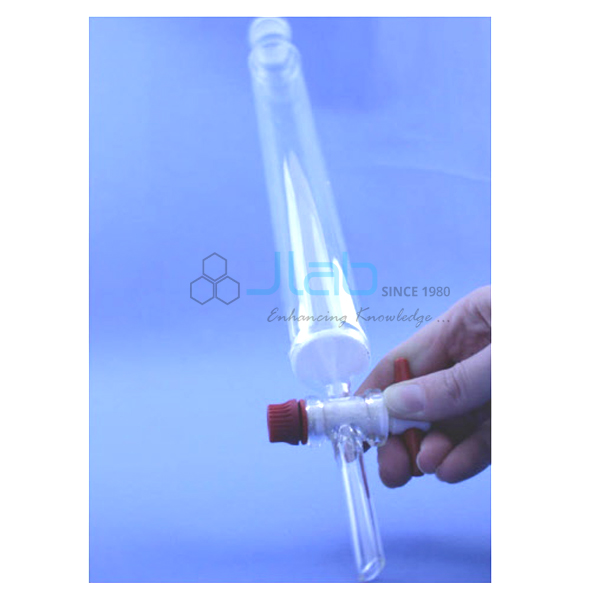

Chromatography Columns with Sintered Disc (product code JA-CC-1595) are glass columns for separating mixtures by column chromatography. In each chromatography column with sintered disc, the disc near the outlet supports the packing, such as silica gel or alumina, so no cotton or glass wool plug is needed. Sixteen sizes are listed, with sinter diameters from 10 mm to 40 mm and lengths from 100 mm to 500 mm, for college, pharmacy and research laboratories.
Specifications
Each column is a glass tube with a sintered disc and a ground-glass socket at the top, listed in 16 combinations of sinter diameter, socket size and length. Wider columns hold more packing for larger samples, and longer columns give more separation.
| Product | Chromatography Columns with Sintered Disc |
| SKU / Product code | JA-CC-1595 |
| Type | Chromatography column with sintered disc |
| 10 mm sinter, socket 14/23 | Lengths 100, 200, 300 and 400 mm |
| 20 mm sinter, socket 19/26 | Lengths 100, 200, 300, 400 and 500 mm |
| 25 mm sinter, socket 24/29 | Lengths 300, 400 and 500 mm |
| 30 mm sinter, socket 34/35 | Lengths 400 and 500 mm |
| 40 mm sinter, socket 40/45 | Lengths 400 and 500 mm |
Applications of the chromatography column with sintered disc
Glass columns are used to separate and purify compounds by passing a solvent through a packed stationary phase and collecting the fractions as they come off the column.
- Separating plant pigments or dye mixtures in B.Sc. and M.Sc. practicals
- Purifying reaction products in organic synthesis
- Pharmacy and phytochemistry practicals using silica gel or alumina
- Small-scale preparative separations in research laboratories
Scope of supply
The listing covers one chromatography column with sintered disc in the sinter diameter, socket and length combination you select. Solvent reservoirs, stopcocks, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are confirmed on each quotation for the sizes, quantities and delivery destination. JaincoLab supplies single laboratories, bulk orders for colleges and institutes, and export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are listed?
Sixteen sizes: 10 mm sinter in 100 to 400 mm lengths, 20 mm sinter in 100 to 500 mm, 25 mm sinter in 300 to 500 mm, and 30 mm and 40 mm sinters in 400 and 500 mm.
What is the sintered disc for?
It supports the column packing and lets solvent pass, so no plug of cotton or glass wool is needed.
How do I choose the size?
Choose a wider column for larger sample loads and a longer column when compounds are hard to separate.
What should a quotation request include?
Send the product code JA-CC-1595, the sinter diameter, socket size, length and quantity for each line, and the delivery destination.
Related products
Related glassware for separation and extraction:
- Extractors Soxhlet
- Stopcocks, PTFE Key, Straight Through
- Stopcocks, Glass Key, Straight Through
- Wide Neck Conical Flasks, Erlenmeyer, Borosilicate Glass
See the Chromatography Columns category or the full range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order Chromatography Columns with Sintered Disc, send the sizes, quantities and delivery destination through the JaincoLab contact page or email [email protected].
