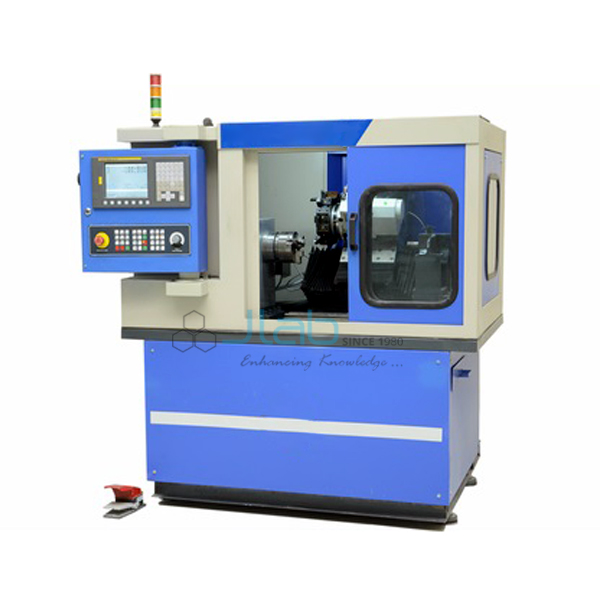

CNC Semi Production Lathe
Product Code : JA-CTM-9045
|
Bed Type |
Flat / 45 Degrees Slant |
|
Chuck Size |
150 mm (Dia) |
|
Chuck Type |
Hydraulic |
|
Maximum Turning Dia / Length |
100 mm / 370 mm |
|
Center Height |
150 mm |
|
Swing over Cross Slide |
125 mm |
|
Swing Over Bed |
300 mm |
|
Distance between Centre |
420 mm |
|
Positioning |
0.010 mm |
|
Repeatability |
+- 0.005 mm |
|
Resolution |
0.001 mm |
|
Spindle Motor |
AC Servo |
|
Spindle Motor Capacity |
5.1 KW / 7 HP |
|
Spindle RPM |
100 to 6000 RPM with VFD |
|
Axis Motor and Drive |
Servo Motor with Servo Drives |
|
X Axis Travel |
120 mm |
|
Z Axis Travel |
380 mm |
|
Feed Rate |
0 to 10,000 mm/min |
|
Rapid Travel |
10,000 mm/min / 20,000 mm/min |
|
Turret Type |
Automatic - Servo Type |
|
Number of Stations |
8 |
|
Tool Cross Section |
20 mm x 20 mm |
|
Boring Bar Size |
16 mm |
|
Tailstock Base Stroke |
230 mm |
|
Tailstock Quill Stroke |
100 mm |
|
Tailstock Actuation |
Hydraulic/ Manual |
|
Lubrication |
Automatic |
|
Coolant |
Automatic |
|
FMS Compatibility |
Provided |
|
Dimension in mm |
2200 x 1200 x 1700 mm |
|
Power Supply |
415V, +-2% 50 Cycles, 3 Phase |
