DC To AC Inverter
Product Code : JA-PET-1446
DC To AC Inverter
- Power Electronic Training Board has been designed specifically for the study of working of inverter.
- A Battery 12V 80 AH(Any car battery) is required to operate this apparatus.
- Different test points have been provided to check wave shape and amplitude of pulses how DC supply is changed to AC supply.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- To study the multi vibrator circuit to convert DC to AC
Features:
- Four NPN low Power Transistors
- Four NPN high Power Transistors

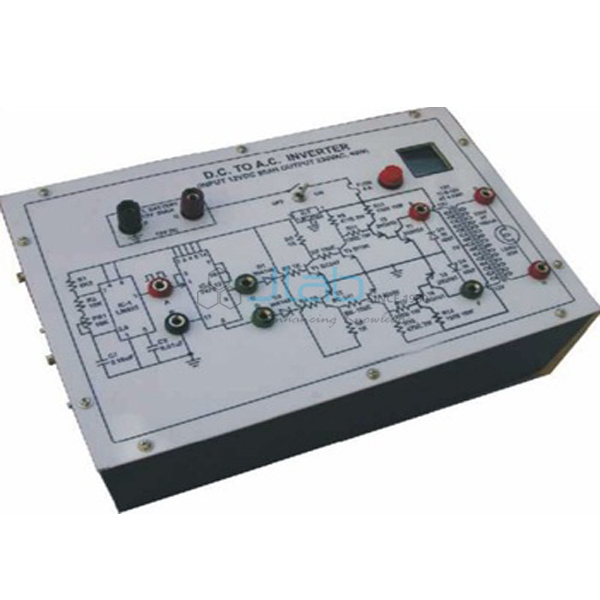

The board consists of the following built-in parts:
- IC-1 & IC-2 to generate AC signals to drive
- 12-0-12V AC at 4 Amp. Transformer
- Four NPN low Power Transistors
- Four NPN high Power Transistors
- Red, Black and Green terminals for test points
- Lamp holder and Lamp 40W, 230V
- Unit is operative on 12 volt 80AH Battery (Any Car Battery)
- Sufficient quantity of patch cords
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Other Apparatus Required:
- Battery 12V DC 80AH (Any Car Battery)
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
