Deflection Magnetometer
Product Code : JA-PLE-4147

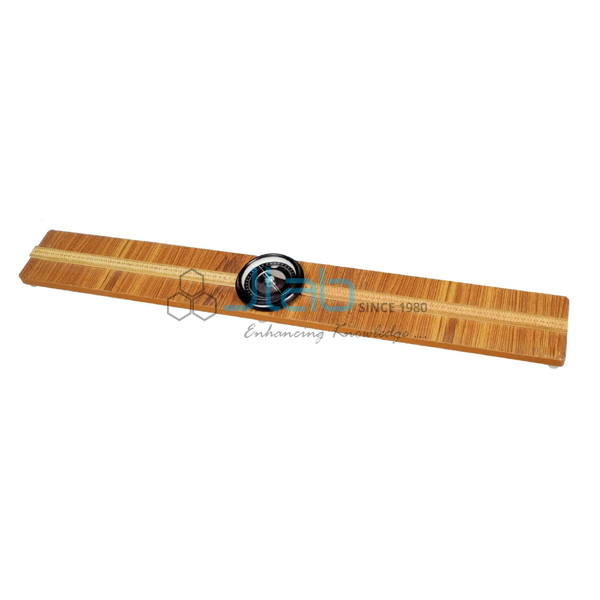

The Deflection Magnetometer (SKU JA-PLE-4147) is a compass box fitted on a polished wooden base that carries a metre scale along its length, used to study the field of a bar magnet by measuring how far it deflects the compass needle at known distances. This deflection magnetometer with metre scale is a standard item in college and senior-school magnetism practicals, and JaincoLab supplies it with a removable compass box.
Specifications
The magnetometer has a compass box fitted on a polished base of non-warping wood, with a metre scale alongside its length, and the compass box can be removed from the base when it is needed separately.
| Product | Deflection Magnetometer |
| SKU | JA-PLE-4147 |
| Base | Polished, non-warping wood |
| Scale | Metre scale alongside the length of the base |
| Compass box | Fitted on the base; removable |
Applications of the deflection magnetometer with metre scale
A bar magnet is placed on the base at a measured distance from the compass, in the end-on or broadside-on position, and the deflection of the needle is read; comparing deflections and distances lets students compare the magnetic moments of two magnets or verify the inverse cube law.
- Comparing the magnetic moments of two bar magnets by the equal-distance or null-deflection method
- Verifying the inverse cube law for the field of a short bar magnet
- Measurements in the end-on (Tan A) and broadside-on (Tan B) positions
- Use with a vibration magnetometer to find the magnetic moment of a magnet and the horizontal component of the earth’s field
Scope of supply and ordering
The listing covers the deflection magnetometer: the wooden base with its metre scale and the removable compass box. Bar magnets are not listed with this item; accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. JaincoLab supplies college physics departments, schools and education projects, and ships export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the base made of?
It is a polished base of non-warping wood with a metre scale alongside its length.
Can the compass box be removed?
Yes. The compass box is removable from the base.
What is a deflection magnetometer used for?
It is used to compare the magnetic moments of bar magnets and to study the field of a magnet by measuring the deflection of a compass needle at known distances.
