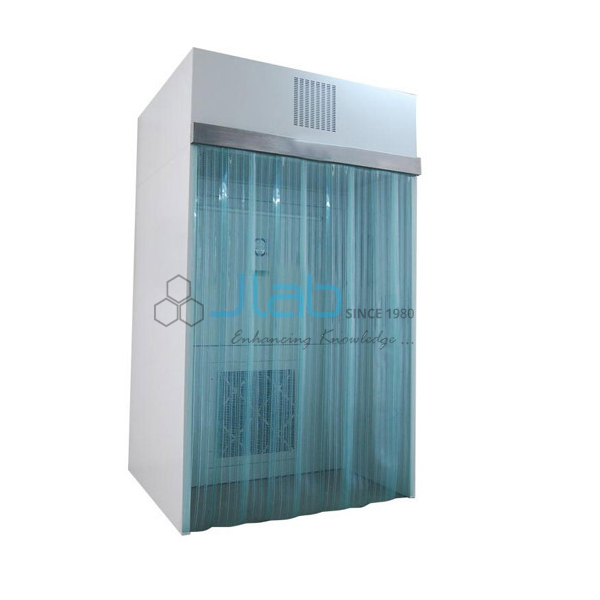

Dispensing Sampling Booth
Product Code : JA-CAE-1966
Dispensing Sampling Booth
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds.
It is provided with HEPA filter, which prevents the airborne dusts by down draught technique.
The unit eliminates powder contamination to protect the operator and the surrounding environment.
Technical Specifications
Noise Level : Less than 65 dB
Vibration Level : Minimum
Power Supply : 230V AC, 50HZ
MOC : GI Powder Coated / SS-304 / SS-316
Inside : Side panel with all three side with coving
Three Stage filtration
Pre-filters (90% down to 10 micron)
Intermediate Filter (95% down to 3 micron)
HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
Statically & Dynamically balanced Motor-blower with isolator to reduce noise level
Fluorescent Lights with Milky White Diffuser
Differential Pressure Gauges: 02 Nos. (Intermediate & HEPA Filter)
ON/OFF Switches (BL / FL / UV)
Auxiliary Powder Socket : 5/15 Amp for external equipment
DOP Port
|
HEPA
AREA |
Working
Area |
Overall
Dimension |
|
610×610 |
610 ×610
×1830 |
710×
1140× 2240 |
|
915 610 |
915
×610× 1830 |
1015×
1140× 2240 |
|
1220 610 |
1220
×610× 1830 |
1330×
1140 ×2240 |
|
1220
1220 |
1220
×1220× 1830 |
1350×
1750 ×2240 |
|
1830
1220 |
1830×
1220 ×1830 |
2000×
1750 ×2240 |
