Distillation Training Unit
Product Code : JA-AM-6490

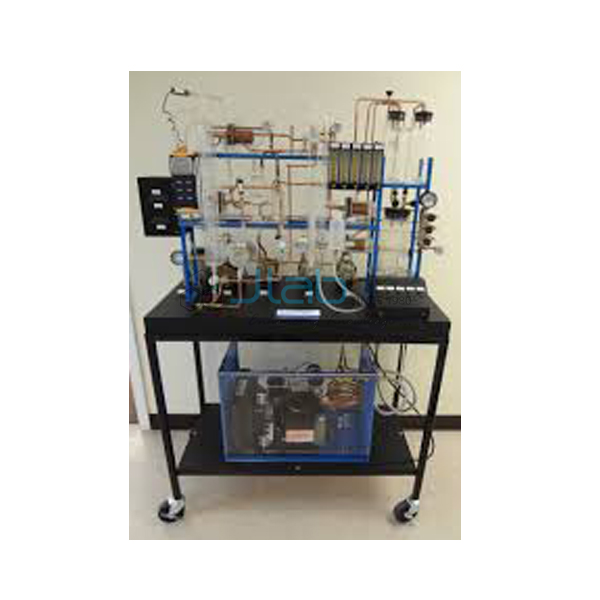

The Distillation Training Unit (SKU JA-AM-6490) is a process operator trainer that shows what happens inside the fractionation and distillation columns of refineries and petrochemical plants. It has no automatic controls, so the column responds only to what the operator does, and its glass fractionating column shows the results quickly. It includes a main column, four pumps, overhead condensers, heat exchangers, a cooling system, a reboiler, temperature gauges and piping, with a carrying case that serves as a stand. It is supplied by JaincoLab for process training centres.
Specifications
The unit comprises a glass main fractionating column, four pumps, overhead condensers, heat exchangers, a cooling system, a reboiler, temperature gauges and piping for small-scale distillation, packed in a carrying case that acts as a stand; column size and heater rating are not listed in the product data and are confirmed on the quotation.
| Product | Distillation Training Unit |
| SKU | JA-AM-6490 |
| Column | Glass fractionating (main) column |
| Pumps | 4 |
| Heat transfer | Overhead condensers; heat exchangers; cooling system; reboiler |
| Instruments | Temperature gauges |
| Control | Manual - no automatic controls |
| Case | Carrying case that serves as a stand |
Applications of the glass column distillation trainer
Operators adjust heat input, reflux and flows by hand and watch the effect on the glass column, learning cause and effect in fractionation before working on plant.
- Visualising fractionation inside a column
- Manual control of reboiler duty, reflux and flows
- Start-up and shutdown practice
- Recognising abnormal column behaviour
- Refinery and petrochemical operator training
Scope of supply and ordering
This listing covers the distillation training unit with column, pumps, condensers, exchangers, cooling system, reboiler, gauges and carrying case. Accessories, spares and quantities are confirmed on the quotation. Utilities and feed liquids are confirmed on the quotation.
Packing, lead time and any minimum order for the Distillation Training Unit are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
Does the unit have automatic controls?
No, it is operated manually so results depend entirely on the operator.
Why is the column made of glass?
So the operator can see the effect of each action inside the column.
How is it transported?
It comes with a carrying case that also acts as a stand.
