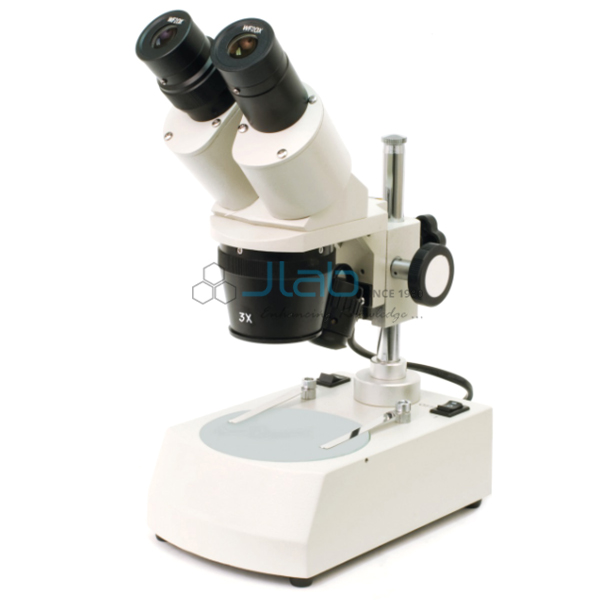

Dual Power LED Stereo Microscope with Pillar Stand
Product Code : JA-M-8101
|
Magnification |
Choice of 10X & 20X, 10X & 30X or 20X & 40X |
|
Viewing Head |
Binocular, 45° inclined |
|
Post mounted head rotates 180° and is adjustable for various working distance |
|
|
Interpupillary distance adjustable from 51mm-75mm. |
|
|
Diopter adjustment on left ocular tube |
|
|
Eyepiece |
Paired 10X wide-field, eyepieces can be upgraded to 15X or 20X at no charge |
|
Eyepieces include two rubber eye guards for comfortable viewing |
|
|
Both eyepieces can be locked on with setscrew to prevent students from removing them. |
|
|
Objectives |
Achromatic objectives are parfocaled and parcentered |
|
Choice of (1X & 2X) (1X & 3X) and (2X & 4X) |
|
|
Focusing Arm |
Rack and pinion focusing with safety stop and tension adjustment |
|
Two focusing knobs |
|
|
Stage |
Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate. |
|
Locked-on stage clips |
|
|
Illumination |
Top light: diagonally adjustable top incident LED light. |
|
Bottom light: transmitted LED light. |
|
|
Built in illumination system allows 3 ways of illumination: transmitted, incident, or dual lighting |
|
|
Main On/off power switch, top/bottom lighting switch control separately |
|
|
3-wire safety cord |
