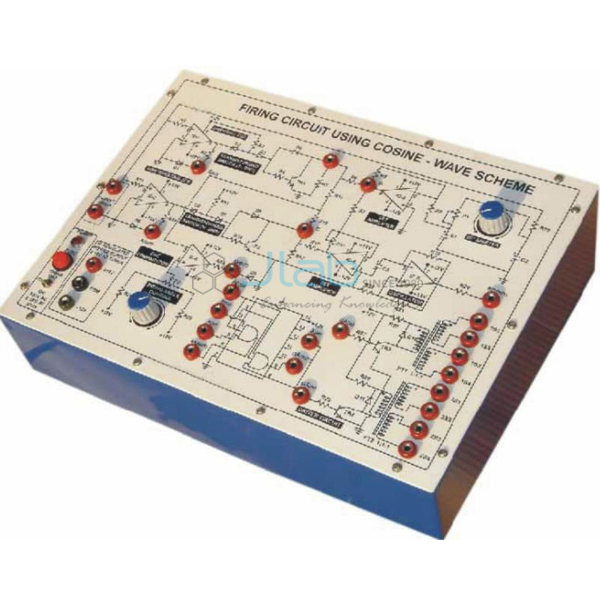

Firing Circuit Using Cosine Wave Scheme
Product Code : JA-PET-1436
Firing Circuit Using Cosine Wave Scheme
- Power Electronic Training Board has been designed specifically for the study of the firing circuit for single-phase converter using cosine wave comparator scheme.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
- To Study firing circuit for single-phase converter using Cosine-Wave Comparator Scheme
Features:
The board consists of the following built-in parts:
- 6VAC at 100mA, AC Power Supply
- ±12V DC at 100mA fixed regulated Power Supply
- Six Op-Amps IC
- Triple, 3 input AND gate IC
- Four NPN Transistor
- Two Potentiometer
- Two Pulse Transformer 1:1:1
- Adequate no. of other Electronic Components
- Mains ON/OFF switch, Fuse and Jewel light
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
Weight:
- 4 Kg. (Approx.)
Dimension:
- W 412 x H 150 x D 310
Other Apparatus Required:
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
OPTIONAL:
- Unit for above experiment to work as a load having
- Isolation Transformer 50 watt
- Lamp 40 watt * SCR 400V 4A
- Mains ON/OFF switch, Fuse & Jewel light
