Fluid Bed Catalytic Cracking Unit
Product Code : JA-AM-6492

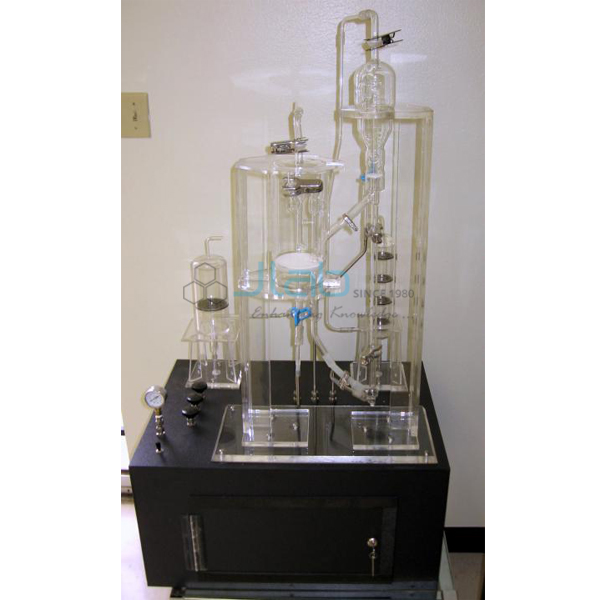

The Fluid Bed Catalytic Cracking Unit (SKU JA-AM-6492) is a working model of a refinery FCC catalyst circulation system. A reactor, regenerator, standpipes, risers and an air blower form the circulation loop; valves on the reactor and regenerator standpipes control catalyst flow, and air injected at the regenerator air inlet, stripper steam inlet and reactor riser feed inlet, each set by a needle valve, fluidises the catalyst. It is used to rehearse start-up, operation and shutdown. It is supplied by JaincoLab for refinery and process training.
Specifications
The model is listed with a base enclosure of 30 1/2 x 21 x 14, a reactor and riser 29 high with reactor diameter 3, and a regenerator 21 high with diameter 4; the unit of these figures is not stated in the source and is confirmed on the quotation.
| Product | Fluid Bed Catalytic Cracking Unit |
| SKU | JA-AM-6492 |
| Circulation system | Reactor, regenerator, standpipes, risers, air blower |
| Catalyst flow control | Valves on reactor and regenerator standpipes |
| Fluidisation | Air at regenerator air inlet, stripper steam inlet and reactor riser feed inlet, each on a needle valve |
| Listed dimensions | Base enclosure 30 1/2 x 21 x 14; reactor and riser 29 high, diameter 3; regenerator 21 high, diameter 4 (units not stated) |
Applications of the FCC model
Trainees circulate the catalyst between reactor and regenerator, balance the three fluidising air flows and practise the start-up, steady operation and shutdown steps of an FCC unit.
- Visualising FCC catalyst circulation
- Start-up, operation and shutdown procedures
- Effect of standpipe valve settings on catalyst flow
- Fluidisation of catalyst with controlled air injection
- Refinery operator and chemical engineering training
Scope of supply and ordering
This listing covers the FCC model with reactor, regenerator, standpipes, risers, blower and needle valves. Accessories, spares and quantities are confirmed on the quotation. Catalyst charge and utilities are confirmed on the quotation.
MOQ, lead time and packing for the Fluid Bed Catalytic Cracking Unit are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What does the model include?
A reactor, regenerator, standpipes, risers and an air blower forming the catalyst circulation system.
How is catalyst flow controlled?
By valves on the reactor and regenerator standpipes.
How is the catalyst fluidised?
By air injected at three points, each controlled by its own needle valve.
