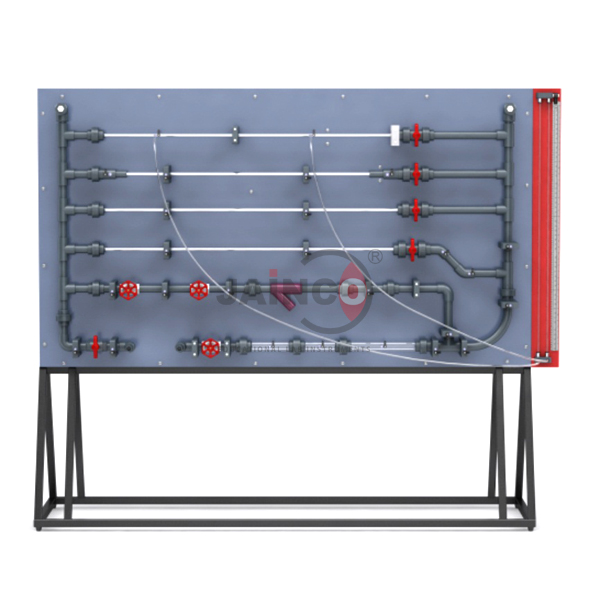

Fluid Friction Measurements
Product Code : JA-FMAHLE-9940
Fluid Friction Measurements
Description:-
Different straight pipes sizes are utilized so as to investigate the friction head losses in straight pipes over an array of Reynolds numbers by covering the turbulent & laminar flow in smooth pipes.
Our offered apparatus is utilized the comprehensive sturdy of the fluid friction head losses from the flow of incompressible fluid through valves, pipes, bends & pipe flow metering devices.
Checked thoroughly by experts, these Fluid Friction Measurements could be availed in various configurations at competitive prices.
Specification:-
A unit for the detailed study of fluid friction head losses which occur when an incompressible fluid flows through pipes, fittings and flow metering devices.
A substantial floor standing tubular steel frame supports test circuits comprising:
4 smooth-bore pipes of different diameters ranging from 4.5mm I.D. to 17.2mm I.D.
Sudden Enlargement
Sudden Contraction
Globe Valve
Gate Valve
artificially roughened pipe
90o bends (large & small radii)
90o mitre
90o elbow
38 Tapping Points
Perspex Pipe Section With A Pitot Tube & Static Tapping
45o elbow, 45° Y, 90° T
Ball Valve
Inline Strainer
Perspex Orifice Meter
Perspex Venturi
