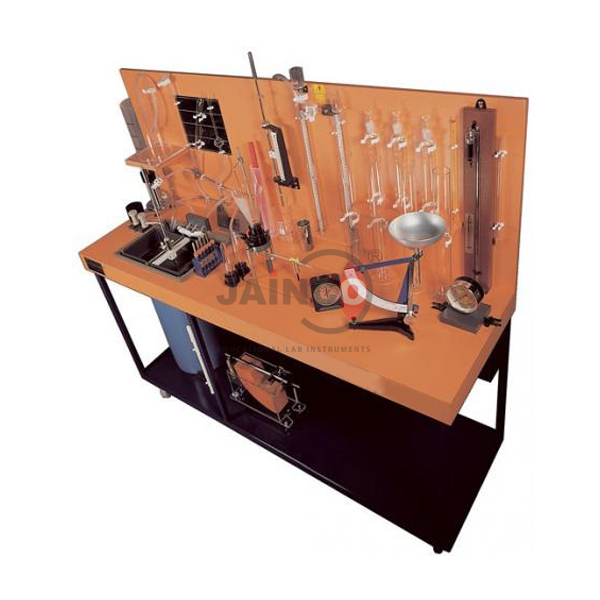

Fluid Properties and Hydrostatics Bench
Product Code : JA-FMAHLE-9941
Fluid Properties and Hydrostatics Bench
Description:-
The following experimental apparatus is included: instruments
Deadweight Pressure Gauge Calibrator And Weights
Parallel Plate Capillary Apparatus
Capillary Tube Apparatus
Hydrostatic Pressure Apparatus
Pascal's Apparatus
Measuring Cylinder
Thermometer
Universal Hydrometer And Hydrometer Jars
Hook And Point Gauge
Mercury Barometer (Mercury Not Supplied)
Metacentric Height Apparatus
Air Pump
600ml Beaker
Stop Clock
Bourdon Gauge
Falling Sphere Viscometers
Free Surface Tubes
U-Tube Manometers
Lever Balance With Displacement Vessel, Bucket And Cylinder
Technical Details:-
Direct reading barometer: With compensated silvered metal scale range 585 to 790mm subdivided in 1mm intervals includes thermometer
100mm dial pressure gauge: Range 0 to 200 kN/m2 (kPa) and equivalent head of water in metres
Dead weight pressure gauge calibrator: With 2 x .5 kg, 1kg and 2.5kg weights
Universal hydrometer: range 0.70 to 2.00 sub-divided in 0.01 intervals
Falling sphere viscometer: 40mm tube diameter
Hydrostatic pressure apparatus: Comprises counter-balanced precision quadrant pivotted on knife edges at its centre of arc
Lever balance: 178mm diameter pan, hook for use in buoyancy experiments, anti-parallax cursor, double scale 0 to 0.25kg and 0 to 1.00kg
