Function Generator
Product Code : JA-PLE-4223

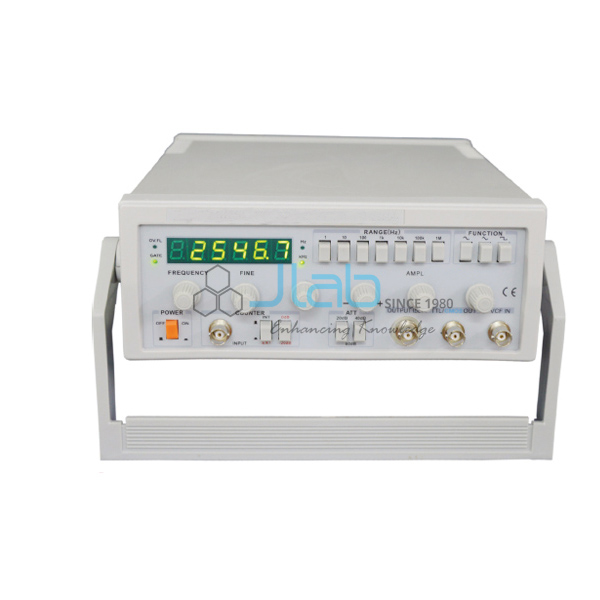

The Function Generator (SKU JA-PLE-4223) is a bench signal source that provides sine, square and triangle waveforms with a linear frequency scale, low distortion and constant amplitude, the output being symmetrical about zero. It delivers up to 20 V peak-to-peak with a continuously variable DC offset of ±10 V. This function generator for physics and electronics labs is used in audio electronics practicals and laboratory research work.
Specifications
The generator gives sine, square and triangle outputs up to 20 V peak-to-peak, with a DC-coupled output, a DC offset control of ±10 V and short-circuit protection on the output.
| Product | Function Generator |
| SKU | JA-PLE-4223 |
| Waveforms | Sine, square and triangle |
| Frequency scale | Linear |
| Output amplitude | Up to 20 V peak-to-peak, constant amplitude |
| Symmetry | Output signal symmetrical about zero |
| Coupling | DC-coupled output; square wave without appreciable sag at low frequency |
| DC offset | Continuously variable, shifts the baseline by ±10 V |
| Protection | Output protected against short circuit |
| Distortion | Low distortion |
Applications of the function generator in physics and electronics labs
A function generator supplies a known, adjustable test signal, so in practical classes it drives circuits under test, while an oscilloscope or meter shows how the circuit responds to each waveform and frequency.
- Frequency response of RC, LC and resonant circuits
- Testing amplifiers and filters in analog electronics practicals
- Driving loudspeakers and vibrators in sound and resonance experiments
- Using the DC offset to bias circuits or shift the signal baseline
- Audio electronics work and laboratory research
Scope of supply and ordering
The listing covers the function generator with sine, square and triangle outputs, DC offset control and short-circuit-protected output. Leads, oscilloscopes and other instruments are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of units and the delivery destination. JaincoLab supplies college and school laboratories, bulk orders for training institutes and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which waveforms does the function generator produce?
Sine, square and triangle waveforms.
What is the maximum output amplitude?
Up to 20 V peak-to-peak, with a DC offset control that shifts the baseline by ±10 V.
Is the output protected?
Yes. The output is protected against short circuit.
