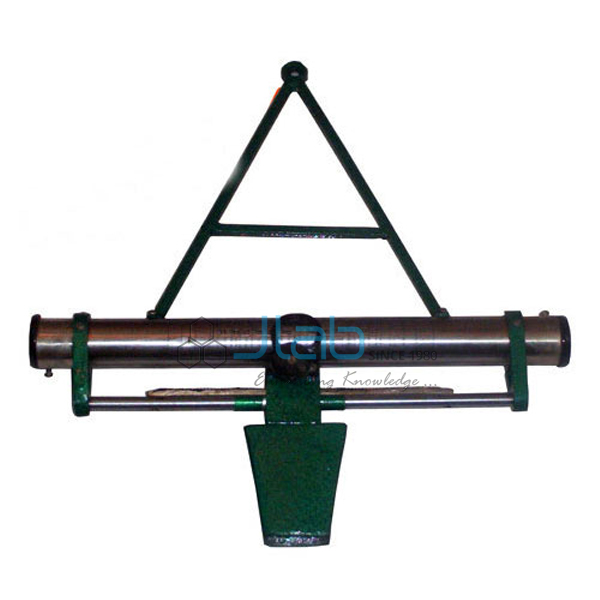

Ghat Tracer
Product Code : JA-CADE-3342
The ghat tracer (SKU JA-CADE-3342) is a surveying instrument for locating points on a hillside and measuring the angle of slope, so that a line of uniform gradient can be set out for hill roads, paths and channels. It is sighted along the slope and adjusted to the required gradient. JaincoLab supplies the ghat tracer for civil engineering and polytechnic surveying practicals and field training.
Specifications
The product data for the ghat tracer describes its purpose rather than its dimensions, so the table lists the use; tube length, gradient range, stand and fittings are confirmed on the quotation.
| Product | Ghat Tracer |
| SKU | JA-CADE-3342 |
| Use | Locating points and measuring angles of slope; setting out lines of uniform gradient |
| Dimensions and fittings | Confirmed on the quotation |
Applications of the ghat tracer
The ghat tracer is used to set out and check a line of uniform gradient along hill slopes, for example when aligning a hill road, footpath or channel, and to measure the slope between two points in surveying exercises.
- Setting out a line of uniform gradient on a hillside
- Measuring the angle of slope between two points
- Preliminary alignment of hill roads, paths and channels
- Surveying practicals for civil engineering degree and diploma students
- Field training in levelling and gradient work
Scope of supply and ordering
The listing covers the ghat tracer as a surveying instrument. Its tube, gradient scale, stand and carrying case are not described in the product data.
Frequently asked questions
What is a ghat tracer used for?
It is used to locate points on a slope and measure the angle of slope, so that a line of uniform gradient can be set out, for example for a hill road.
Is a stand included?
The listing does not describe the stand or case; tell us what you need and it will be confirmed on the quotation.
Can it be supplied for a surveying laboratory set?
Yes. It can be quoted with other surveying instruments such as chains, cross staffs and line rangers for a complete laboratory.
Related products
Other surveying instruments are listed in the JaincoLab civil and draughtsman equipment range.
Request a quote
To order the ghat tracer, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
