Lab Refrigerator
Product Code : JA-ELA-5500

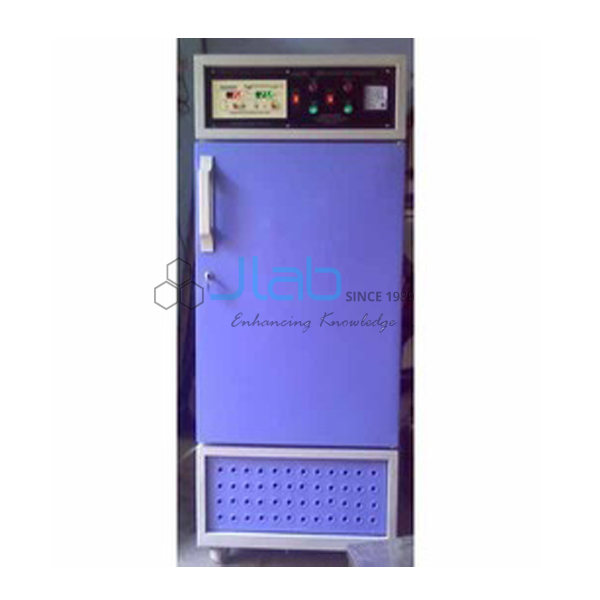

The Lab Refrigerator (SKU JA-ELA-5500) is a 171 litre (6.1 cu ft) laboratory refrigerator made by JaincoLab for keeping reagents, media and samples at 2 °C to 8 °C. It is double walled, with a heavy-gauge stainless steel 304 inner chamber, a painted or powder-coated steel outer body and 100 mm of polyurethane foam insulation between the walls. A digital indicator-cum-controller holds the temperature, and an audio-visual alarm sounds if it drifts outside the permitted band.
Specifications
The construction, control and alarms listed for the lab refrigerator are shown below.
| Product | Lab Refrigerator |
| SKU | JA-ELA-5500 |
| Capacity | 171 L (6.1 cu ft) |
| Temperature | 2 °C to 8 °C |
| Control | Digital temperature indicator-cum-controller |
| Alarms | Audio-visual alarm for high and low temperature; power supply failure alarm |
| Inner chamber | Stainless steel 304, 26 SWG |
| Outer body | Mild steel CR sheet, 20/22 SWG, enamel painted or powder coated |
| Insulation | 100 mm PUF between the walls |
| Doors | Outer double-walled door and full-view inner glass door |
| Storage | Three or four drawers |
| Compressor | CFC-free; Kirloskar, Tecumseh or Danfoss make as listed |
| Mounting | Angle frame on castor wheels |
| Power | 220/230 V AC |
Where it is used
- Storing reagents, stains and culture media at 2 °C to 8 °C
- Keeping biological samples cold between practical sessions
- Holding temperature-sensitive solutions in chemistry and pharmacy laboratories
Scope of supply and ordering
The refrigerator is supplied complete with drawers and alarms for a 220/230 V AC supply.
Frequently asked questions
What temperature does it hold?
2 °C to 8 °C, set on the digital indicator-cum-controller.
Can samples be seen without opening the chamber?
Yes. A full-view inner glass door lets samples be inspected without disturbing the inner chamber conditions.
What alarms are fitted?
An audio-visual alarm for high and low temperature and a power supply failure alarm.
Related products
Refrigeration and storage items are in the educational laboratory apparatus range.
Request a quote
For the Lab Refrigerator (JA-ELA-5500), ask for a quotation through our contact page. For tender or project supply, see our tenders page.
