Laboratory Hot Plate with Magnetic Stirrer
Product Code : JL-LEP-10396

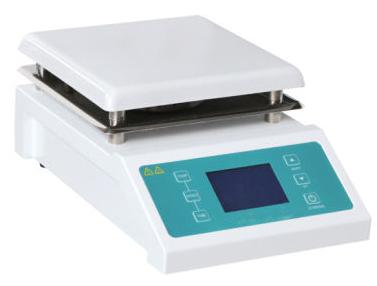

The Laboratory Hot Plate with Magnetic Stirrer (SKU JL-LEP-10396) is a digital hot plate magnetic stirrer that heats and stirs samples, solutions and glassware at the same time. It reaches 380°C on a 180 mm ceramic-coated plate, stirs up to 20 L at 80–1500 rpm, and has an external temperature probe, a support rod and over-temperature protection. It is used for preparing solutions, media and reagents, and JaincoLab supplies it to school and college laboratories.
Specifications
The hot plate magnetic stirrer has a 180 × 180 mm chemical-resistant ceramic-coated aluminium plate on a cast aluminium body, heats to 380°C with ±0.3°C accuracy and 600 W heating power, stirs 20 L at 80–1500 rpm, and is controlled from a backlit LCD with an external 250 mm probe, a 12 × 450 mm stand rod and a 3 cm stirring bar.
| Product | Laboratory Hot Plate with Magnetic Stirrer |
| SKU | JL-LEP-10396 |
| Purpose | Heats samples, glassware, solutions and substances with constant stirring; boils water, sterilises glassware, dissolves buffers and reagents, prepares media and concentrates samples |
| Type | Digital |
| Top plate | Ceramic-coated aluminium, chemical and acid resistant, white, 180 × 180 mm minimum |
| Body | Powder-coated cast aluminium; 206 × 307 × 99 mm (L × W × H) |
| Maximum temperature | 380°C; accuracy ±0.3°C at set temperature |
| Stirring | 20 L capacity; 80–1500 rpm; 5 rpm control resolution |
| Temperature resolution | 0.1°C display, 0.5°C control; heating uniformity within 10% |
| Power | 600 W heating; 220–240 V AC, 50/60 Hz, 800 W overall |
| Display and controls | Backlit digital LCD, turn-and-push selector, quick adjustment knob, safety LEDs |
| Stirring bar | 3 cm bar included; bars up to 5 cm can be used |
| Support rod | Built-in mount with thumbscrew for rods up to 13 mm; stainless steel stand rod 12 mm × 450 mm |
| Temperature probe | External direct-contact probe, 4 mm × 250 mm, with holder/clamp and LED indicator |
| Safety | Over-temperature protection; LEDs indicate active heating |
| Specification reference | As per DepEd guidelines |
Applications of the hot plate magnetic stirrer
The unit replaces a burner and hand stirring wherever a solution must be heated evenly and mixed continuously, such as dissolving solids, preparing culture media, concentrating samples and running temperature-controlled experiments.
- Dissolving salts, buffers and reagents with constant stirring
- Preparing and warming culture media in biology and microbiology
- Boiling water and sterilising glassware
- Concentrating samples by controlled evaporation
- Temperature-controlled experiments using the external probe in college chemistry
Scope of supply
The listing covers the hot plate stirrer with its 3 cm stirring bar, stand rod and external temperature probe as described in the specification table. Additional stirring bars, plug type and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are quoted for the number of units and the delivery destination. JaincoLab supplies school and college laboratories, research departments and export buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
What is the maximum temperature?
380°C, with ±0.3°C accuracy at the set temperature.
What is the stirring range?
80–1500 rpm, with a 20 L stirring capacity and 5 rpm control resolution.
What size is the top plate?
At least 180 × 180 mm, in chemical- and acid-resistant ceramic-coated aluminium.
Is a temperature probe included?
Yes. An external direct-contact probe, 4 mm × 250 mm, with holder and LED indicator.
What should a quotation request include?
Send the SKU JL-LEP-10396, the quantity, the supply voltage and the delivery destination.
