Microprocessor UV-VIS Spectrophotometer
Product Code : JA-S-6596

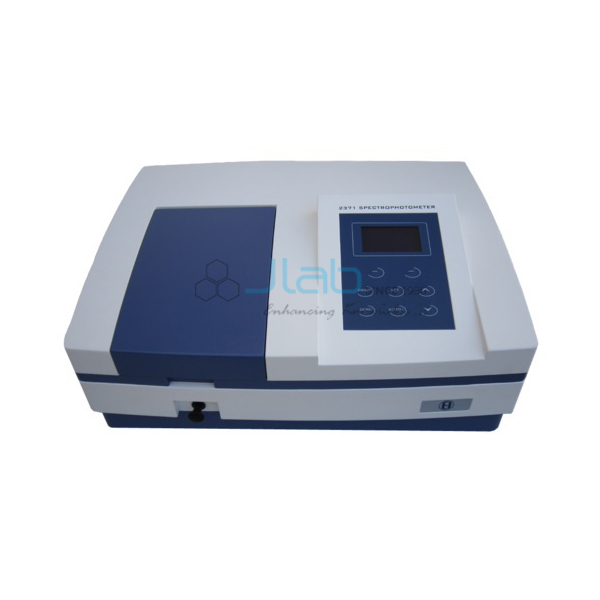

Microprocessor UV-VIS Spectrophotometer
- Microprocessor UV-VIS Spectrophotometer Is a Single Beam Compact and Easy to operate instrument for spectrophotometric analysis of a solution of any concentration.
- The output is available on a 16 x 2 line alphanumeric backlit LCD display in terms of %transmission (%t), absorbance(abs.), concentration (conc.) And k-factor.
- This instrument has 100 sample storage memories, printer output for printing data with any dot matrix printer. Rs-232c interface for computer can be provided on request.
- The use of microcontroller had made it an extremely versatile and state-of- the-art instrument. Facility for using 10 mm path length cuvette is provided.
- The instrument operates at wavelength between 190 to 1000 nm.
- Diffraction grating of 1200 lines/mm in the monochromatic produces a linear spectrum.
- An automatic shutter is provided to stop the light, increases the life of photodiode tremendously.
- Deuterium lamp (d2) is used in the range 190 to 350 nm and tungsten halogen lamp (w) covers the range 350 to 1000 nm.
- This is extremely useful in chemistry labs, mineral water testing, pharmaceutical labs, universities, hospitals, research centres, biotechnological, drugs & agricultural labs.
- This is extremely useful for quantitative analysis.
- Features
- Range 190 To 1000 Nm
- Rs-232C Computer Interface
- 4 Digit Wavelength Display
- 4-Position Cuvette Holder
- Printer Interface
- 16 X 2 Line Lcd Data Display
