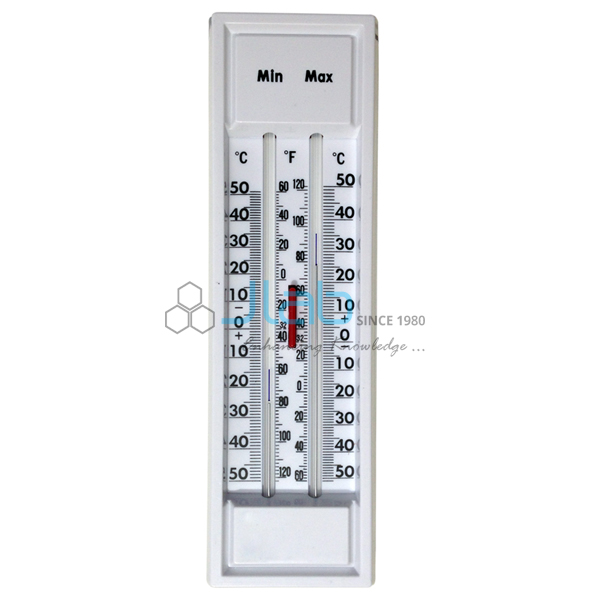

Minimum Maximum Thermometer
Product Code : JA-CE-4338
Jaincolab is a trusted chemistry lab instruments supplier, offering the Minimum Maximum Thermometer, a U-shaped mercury-in-glass instrument that registers the highest and lowest temperatures recorded over a chosen time period.
Construction & Design
The Minimum Maximum Thermometer is built as a U-shaped parallel glass tube with two bulbs filled with alcohol or oil at the top, and mercury in the bend at the bottom. As the alcohol or oil in the bulbs expands or contracts with thermal changes, it drives the mercury up and down the two parallel scales. One side of the tube registers the minimum temperature reached, while the other registers the maximum, since the instrument's last reading. A celluloid graduated magnet index is used to mark and hold each reading in place.
Key Features
- Records both maximum and minimum temperatures since last reading
- U-shaped mercury-in-glass design with alcohol/oil-filled bulbs
- Celluloid graduated magnet index for marking readings
- Temperature range of -20 to +50 °C
Specifications
| Product Name | Minimum Maximum Thermometer |
|---|---|
| SKU | JA-CE-4338 |
| Temperature Range | -20°C to +50°C |
| Index Type | Celluloid Graduated Magnet |
| Fill Fluid | Mercury with alcohol/oil bulbs |
Why Choose Jaincolab
Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified, and is a trusted chemistry lab instruments supplier serving India and international markets. Explore related items in our Chemistry Equipment and Chemistry Lab Equipment ranges.
Applications
| Application | Use |
|---|---|
| School & College Chemistry Labs | Recording daily temperature highs and lows during weather and thermal experiments |
| Research Laboratories | Monitoring temperature extremes over extended storage or incubation periods |
Frequently Asked Questions
Q1: How does the Minimum Maximum Thermometer work?
A1: It uses two scales set in liquid mercury, driven by alcohol or oil in two bulbs, to register the maximum and minimum temperatures reached over a chosen time period.
Q2: What is the temperature range of this thermometer?
A2: It has a temperature range of -20°C to +50°C.
Q3: How are the readings marked on the thermometer?
A3: A celluloid graduated magnet index marks and holds each reading in place until it is reset.
Q4: Does Jaincolab manufacture and export the Minimum Maximum Thermometer?
A4: Yes, Jaincolab is the manufacturer and exporter of the Minimum Maximum Thermometer, supplying it across India and internationally.
Q5: Is Jaincolab an ISO certified manufacturer?
A5: Yes, Jaincolab is ISO 9001:2015 and ISO 14001:2015 certified.
