Optical Bench Kit
Product Code : JA-LOE-7913

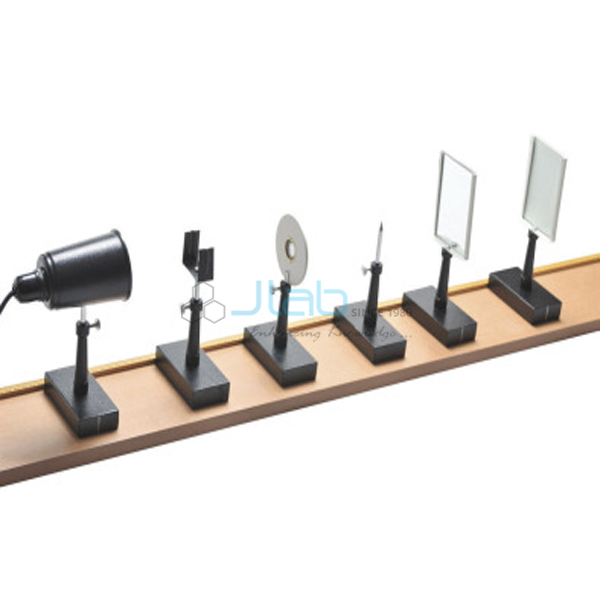

The Optical Bench Kit (SKU JA-LOE-7913) is a 1.5 metre wooden optical bench with millimetre divisions and a set of mounted accessories for lens, mirror and image-formation practicals. It includes a lamp housing with white lamp, a 75 mm white metal object screen, a lens holder for 38 mm lenses, an object needle on a 6 mm rod, a 100 x 75 mm plane mirror in a metal frame and a receiving screen slotted for squared paper. This 1.5 m wooden optical bench kit is manufactured in India by JaincoLab.
Specifications
The kit is built on a wooden optical bench 1.5 m long with millimetre divisions, carrying the six mounted accessories listed in the table below.
| Product | Optical Bench Kit |
| SKU | JA-LOE-7913 |
| Bench | Wooden, 1.5 m long with millimetre divisions |
| Light source | Lamp housing with white lamp |
| Object screen | White metal, 75 mm diameter |
| Lens holder | For 38 mm diameter lenses |
| Object needle | Mounted on 6 mm metal rod |
| Mirror | Plane mirror in metal frame, 100 x 75 mm |
| Receiving screen | White metal, with slot for squared paper |
Applications of the 1.5 m wooden optical bench kit
The optical bench kit is used for the standard lens and mirror practicals of senior-secondary and undergraduate physics, in which the positions of object, lens or mirror and screen are read directly from the millimetre scale along the 1.5 m bench.
- Finding the focal length of a convex lens by the u-v method and plotting 1/u against 1/v
- Locating images with the object needle by the parallax method
- Studying image formation and magnification with the object and receiving screens
- Plane mirror and lens-mirror combination experiments
- Comparing the focal lengths of 38 mm lenses of different powers
Scope of supply
The listing covers the 1.5 m wooden bench with the lamp housing and white lamp, object screen, 38 mm lens holder, object needle, framed plane mirror and receiving screen. Lenses, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Packing, minimum order quantity and lead time are confirmed per quotation for the number of kits and the delivery destination. JaincoLab supplies single benches and complete class sets for schools and colleges, and bulk or export orders for education projects in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How long is the optical bench and how is it graduated?
The wooden bench is 1.5 m long with millimetre divisions.
Which accessories are included?
A lamp housing with white lamp, a 75 mm white metal object screen, a lens holder for 38 mm lenses, an object needle on a 6 mm metal rod, a 100 x 75 mm plane mirror in a metal frame and a white metal receiving screen with a slot for squared paper.
Are lenses included?
The kit includes a lens holder for 38 mm diameter lenses; the lenses themselves are confirmed on the quotation.
What should a quotation request include?
Send the SKU JA-LOE-7913, the number of kits, any 38 mm lenses needed and the delivery destination.
