Optical Bench Set
Product Code : JA-LOE-7915

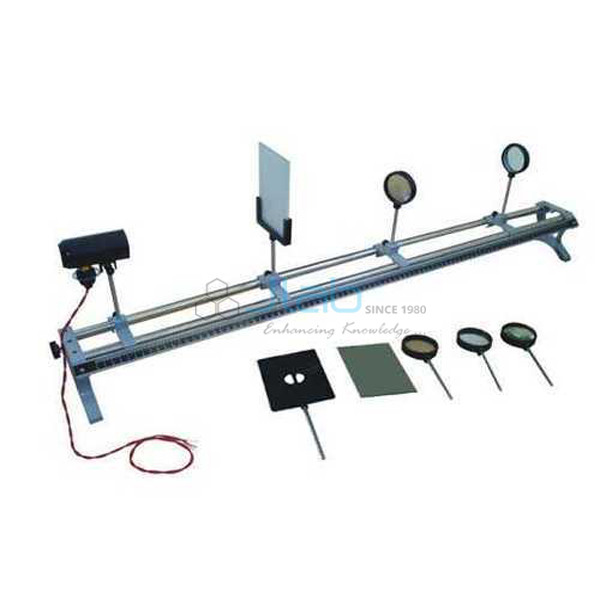

The Optical Bench Set (SKU JA-LOE-7915) is a complete optics bench for lens and mirror experiments, built on a non-twisting aluminium alloy bench 1,200 mm long with a scale in centimetres and millimetres. It comes with a rod-mounted light source using a 12 V, 24 W bulb, three universal holders on sliders, a set of 50 x 50 mm object and screen slides, a magnification accessory, a 100 x 100 mm double-sided scaled screen and a 50 x 50 mm plane mirror. This aluminium optical bench set is manufactured in India by JaincoLab.
Specifications
The set combines a 1,200 mm aluminium alloy bench with a cm and mm scale, a light source with mounting rod, 12 V 24 W bulb, 2 m of flex and two 4 mm plugs, three universal holders on sliders and the slides, screens and mirror listed below.
| Product | Optical Bench Set |
| SKU | JA-LOE-7915 |
| Bench | Non-twisting aluminium alloy, 1,200 mm, scale in cm and mm |
| Light source | With mounting rod, 12 V 24 W bulb, 2 m flex and 2 x 4 mm plugs |
| Holders | 3 universal holders on sliders |
| Slides (50 x 50 mm) | Triangular gauze object with image return screen, 2 pin objects, diffuse screen and scale object |
| Magnification accessory | Concentric circles of 10 mm and 20 mm diameter |
| Screen | 100 x 100 mm double-sided scaled screen on slider |
| Mirror | 50 x 50 mm plane mirror |
Applications of the aluminium optical bench set
The optical bench set covers the core geometrical optics practicals, including focal lengths of lenses, curvature of mirrors and lens combinations, with every component mounted on sliders so that distances can be read straight from the 1,200 mm scale.
- Focal length of convex lenses by the u-v and displacement methods
- Radius of curvature and focal length of concave mirrors
- Lens combinations and the focal length of two lenses in contact
- Measuring magnification with the concentric-circle accessory
- Locating images by no-parallax with the pin objects
Scope of supply
The listing covers the bench and all accessories named in the specification: the light source with bulb, flex and plugs, three holders on sliders, the slides, the magnification accessory, the scaled screen and the plane mirror. Lenses, spare bulbs, a power supply, accessories and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Lead time, packing and minimum order quantity are confirmed on each quotation for the number of sets and the delivery destination. JaincoLab supplies bench sets for school and college optics laboratories and bulk or export orders for education projects in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How long is the bench and what is it made of?
It is a non-twisting aluminium alloy bench 1,200 mm long with a scale divided into cm and mm.
What light source is included?
A light source with mounting rod and a 12 V, 24 W bulb, supplied with 2 m of flex and two 4 mm plugs.
Which slides and screens come with the set?
50 x 50 mm slides with a triangular gauze object and image return screen, two pin objects, a diffuse screen and a scale object, plus a magnification accessory and a 100 x 100 mm double-sided scaled screen on a slider.
What should a quotation request include?
Send the SKU JA-LOE-7915, the number of sets, any lenses or 12 V supplies needed and the delivery destination.
