Polaroid Filters Adjustable 90 Degrees
Product Code : JC-LOE-9416

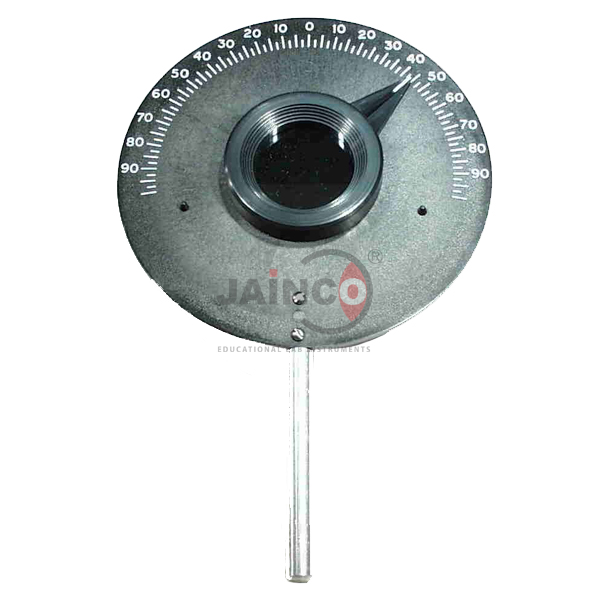

The Polaroid Filters Adjustable 90 Degrees (SKU JC-LOE-9416) are a mounted pair of polarising filters, 50 mm in diameter at the centre, that can be rotated relative to each other through 90 degrees. On this mounted polarising filter pair with pointer and scale, a pointer moves round a circular scale and reads zero when the filters are aligned for maximum transmission, so the rotation either side of zero is easily measured as the transmitted light falls to zero at 90 degrees.
Specifications
The unit is a mounted pair of polarising filters, 50 mm in diameter at the centre, with a pointer reading on a circular scale from zero, at maximum transmission, to 90 degrees either side.
| Product | Polaroid Filters Adjustable 90 Degrees |
| SKU | JC-LOE-9416 |
| Filters | Mounted pair of polarising filters |
| Filter diameter | 50 mm at the centre |
| Adjustment | 90 degrees either side of zero |
| Scale | Pointer on a circular scale; zero at maximum transmission |
| Behaviour | Transmitted light falls to zero at 90 degrees |
Experiments with the adjustable polarising filters
Because the pointer gives the angle directly, the mounted pair suits quantitative polarisation work, such as measuring how transmitted intensity varies with the angle between the filters.
- Demonstrating extinction of light by crossed polarisers at 90 degrees
- Measuring transmitted intensity against angle for Malus's law
- Studying the polarisation of reflected light
- Class demonstrations of polarisation with a single mounted unit
Scope of supply
Each unit is one mounted pair of polarising filters with pointer and circular scale. Light sources, meters, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. JaincoLab supplies polarisation and optics apparatus to schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
How far can the filters be rotated?
Through 90 degrees either side of zero, where zero is the position of maximum light transmission.
How is the angle read?
A pointer indicates the angle on a circular scale.
What is the filter size?
The filter diameter at the centre is 50 mm.
What should a quotation request include?
Send the SKU JC-LOE-9416, the quantity and the delivery destination.
