Pressure Distribution on a Cylinder
Product Code : JA-FMAHLE-10003
The Pressure Distribution on a Cylinder accessory (SKU JA-FMAHLE-10003), supplied by JaincoLab, measures the pressure around a cylinder placed across an air flow. The cylinder has a single radial hole and can be rotated to any angle, read on a scale and detected electronically, so the full pressure distribution is built up point by point. With a total pressure sensor, this cylinder in cross flow set also measures the total pressure in the wake behind the cylinder.
Specifications
The pressure distribution accessory is specified by a cylinder of 25 mm outer and 21 mm inner diameter with a radial pressure hole, an angle scale and electronic angle detection; measured values are displayed and analysed in software. The base air-flow unit is confirmed on the quotation.
| Product | Pressure Distribution on a Cylinder |
| SKU | JA-FMAHLE-10003 |
| Cylinder | OD 25 mm, ID 21 mm, radial hole for pressure measurement |
| Rotation | Rotatable for measurement at any angle; angle scale |
| Angle detection | Electronic |
| Wake measurement | Total pressure in the wake, with a total pressure sensor |
| Data | Display and analysis of measured values in software |
Experiments with the cylinder in cross flow

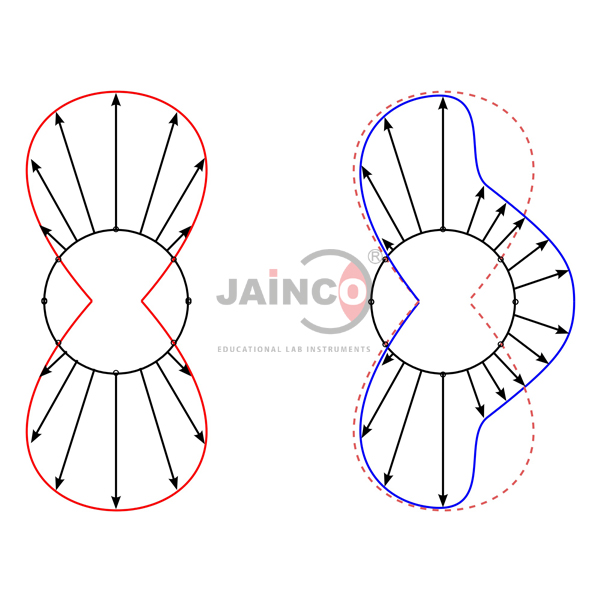

The accessory is used to plot the pressure coefficient around a cylinder against angle and to relate the wake pressure deficit to the drag on the cylinder.
- Pressure distribution around a cylinder in transverse flow
- Pressure coefficient against angle
- Total pressure in the wake of the cylinder
- Comparison with ideal-flow theory
Scope of supply and ordering
The listing covers the Pressure Distribution on a Cylinder accessory. The base air-flow unit, total pressure sensor and software are confirmed on the quotation.
Frequently asked questions
How is the pressure measured around the cylinder?
Through one radial hole; the cylinder is rotated to each angle, read on a scale and detected electronically.
What size is the cylinder?
25 mm outer diameter and 21 mm inner diameter.
Can the wake be measured?
Yes, with a total pressure sensor in the wake of the cylinder.
