SCR Triggering Circuit
Product Code : JA-PET-1424

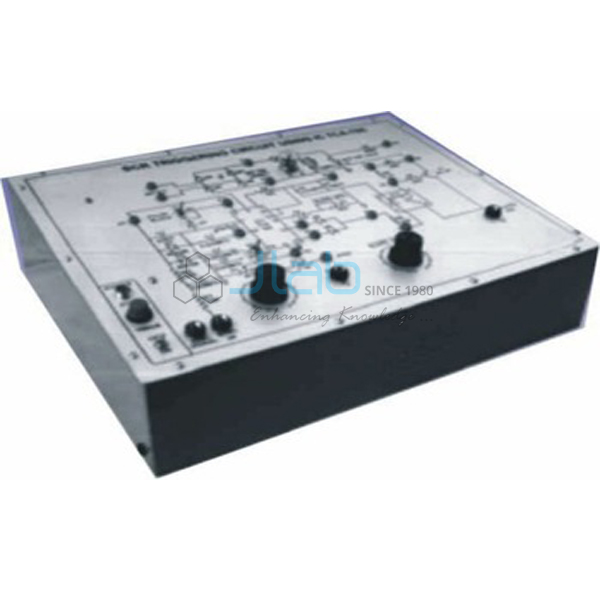

SCR Triggering Circuit
- SCR Triggering using IC TCA-785.
- This Training Board gives a better understanding on the operation of Signal Conditioner and Pulse Generator IC TCA-785.
- Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To perform the following experiments:
- SCR triggering with controlled gate pulses
- Change of firing angle in response to the change in reference voltage
- Functioning of Signal Conditioner and Pulse Generator IC TCA-785
Features:
The board consists of the following built in parts:
- + 15V, +10V D.C. at 50mA, IC Regulated Power Supply internally connected
- + 5V D.C. at 50mA, IC Regulated Power Supply Isolated
- Synchronising Signal
- 24V at 300mAA.C. supply
- Signal Conditioner and Pulse Generator IC TCA-785
- Op to Coupler
- SCR 100V/1Amp
- Transistor BC-107
- Adequate no. of other Electronic Components
- Mains ON/OFF switch, Fuse and Jewel light
- The unit is operative on 230V ±10% at 50Hz A.C. Mains
- Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ metre
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory,
- Design procedures, Report Suggestions and Book References
Weight:
- 4 Kg. (Approx.)
Dimension:
- W 412 x H 150 x D 310
Other Apparatus Required:
- Dual Trace Cathode Ray Oscilloscope 20MHz (Unearthed)
- Bulb 24V/7W
Note:
- Specifications are subject to change
Other Information:
Pay Mode Terms:
- T/T (Bank Transfer)
Port of Dispatch:
- India
Delivery Time:
- 4 weeks
Packaging Details:
- Corrugated Box
