Seismograph Model
Product Code : JL-LEP-10307

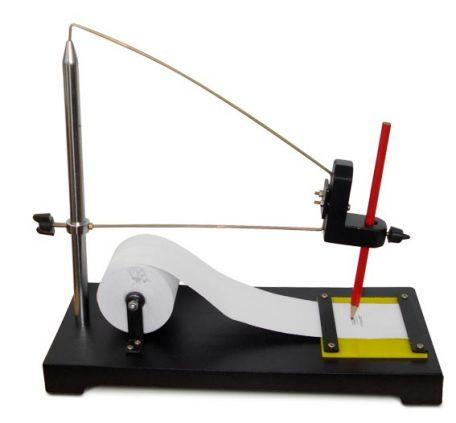

The Seismograph Model (SKU JL-LEP-10307) shows how a seismograph records earthquakes and their comparative strengths. A recording pen is attached to a weight suspended from a support on a metal base stand. When the table the model is clamped to is shaken to simulate an earthquake, the support moves while the weight tends to stay still, and the pen traces the vibration on 65 mm recording paper pulled by hand through the frame. The seismograph model has a chrome-plated 325 mm rod. JaincoLab supplies it as per DepEd guidelines.
Specifications
The model is specified by principle, parts and sizes: a pen on a suspended weight, a chrome-plated 325 mm rod and support, a galvanised iron recording frame, a 65 mm paper roll, a table clamp with 65 mm opening and a base at least 295 x 155 x 25 mm.
| Product | Seismograph Model |
| SKU | JL-LEP-10307 |
| Working principle | Recording pen attached to a weight suspended from a support on a metal base stand |
| Recording action | Support moves with vibration; pen records on paper pulled by hand through the frame |
| Earthquake simulation | By vibrating the table on which the model is mounted |
| Recording paper | Roll, 65 mm wide, with mounting |
| Set components | Recording pens, suspended weight, support with painted metal base, recording frame, table clamp (65 mm opening) |
| Stand rod | Metal, 325 mm, chrome-plated |
| Support | Metal, chrome-plated |
| Recording frame | Galvanised iron sheet |
| Base dimensions | 295 x 155 x 25 mm (min) |
| Specification reference | As per DepEd guidelines |
Applications of the seismograph model
The model is used in earth science lessons on earthquakes and how they are measured. Typical uses are:
- Recording simulated earthquakes on paper
- Comparing traces from gentle and strong vibrations
- Explaining how inertia of the suspended weight makes recording possible
- Introducing seismograms and earthquake magnitude
Scope of supply
Each unit is one seismograph model with pens, weight, stand, frame, paper roll and table clamp, as described in the specification table. Spare paper and pens are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time are confirmed on the quotation for the quantity and destination. JaincoLab supplies schools, bulk orders for education projects, and export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the Seismograph Model demonstrate?
How a seismograph records earthquakes and their comparative strengths.
How is an earthquake simulated?
By vibrating the table on which the model is clamped.
What paper does it use?
A 65 mm wide roll of recording paper.
What should a quotation request include?
Send the SKU JL-LEP-10307, the quantity and the delivery destination.
