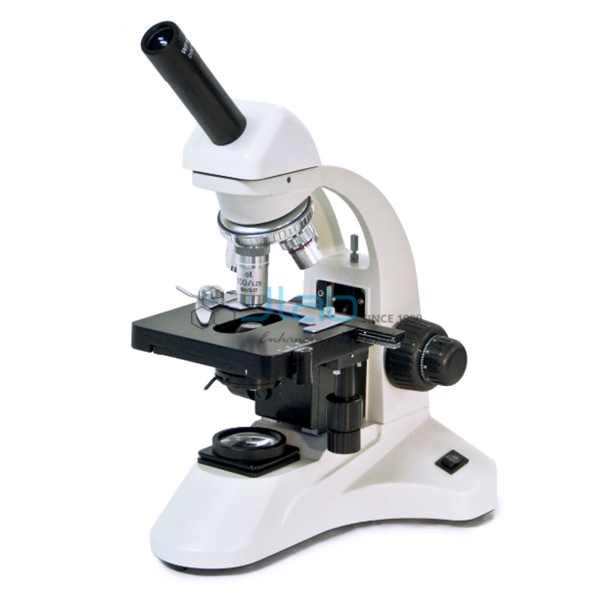

Series Monocular Microscope
Product Code : JA-M-8062
|
Viewing Head |
Monocular head, 360° rotating inclined at 45° |
|
Eyepiece |
Locked-on 10X wide-field eyepiece with calibrated pointer; locked on for security to prevent misplacement or damage |
|
Nosepiece |
4-position reverse nosepieces with positive click stops |
|
Objectives |
Achromatic DIN objectives: 4X, 10X, 40XR, and 100XR (oil immersion); they color-coded, parcentered, and parfocaled; the 40XR and 100XR objectives are retractable (R) |
|
Focusing System |
Coaxial coarse and fine focusing control |
|
Rack and pinion coarse focusing with slip clutch at both ends of travel to prevent damage to the microscope gears |
|
|
Safety rack stop ensures delicate specimens and objective lens are not damaged |
|
|
Tension adjustment eliminates focus drift |
|
|
Stage |
Built-in X-Y mechanical stage 12.5cm x 11.5cm with 0.1mm increments for precise measurement |
|
With X-Y control torque |
|
|
Smooth X/Y calibrated movement with cross travel range 7.4cm x 3cm |
|
|
Condenser |
Focusable 1.25 N.A. Abbe condenser |
|
Can be moved up and down controlled by a rack and pinion system |
|
|
Iris diaphragm that has clear optical plastic protection to protect diaphragm from dust and foreign objectives |
|
|
Turn wheel control makes it easy to adjust the size of central aperture of Iris diaphragm to match the N.A. of the objective in use |
|
|
Illumination |
Built-in LED illumination |
|
Light intensity control helps to achieve better contrast |
|
|
LED bulb lifespan is 10,000 hours |
|
|
Three wire-grounded power cord for corded models only |
|
|
Design |
Full 14.5" in height with 9.2" x 8" base, an ergonomic arm for convenient transport |
