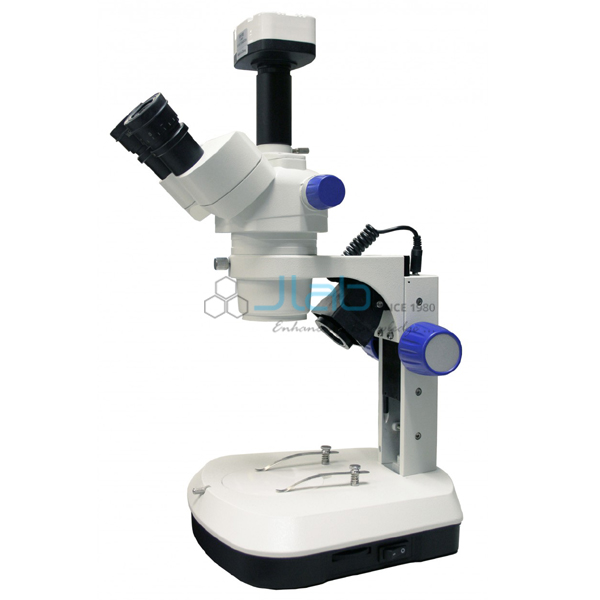

Super Widefield Digital Trinocular Zoom Stereo Microscope
Product Code : JA-M-8127
|
Magnification |
Standard magnification: 6.6X~50X. Magnification range can be 3.3X~200X with auxiliary objectives and optional eyepieces |
|
Viewing Head |
Trinocular head (20/80 light splitting ratio), 45° inclined and 360° rotatable. |
|
Interpupillary distance adjustable from 54mm-76mm. |
|
|
Eyepiece |
10X wide-field, high eyepoint |
|
Two diopter adjustment of +/-5 on both eyepieces |
|
|
Paired 10X/23mm, optional eyepieces WF20X/12mm and reticle eyepieces WF10X/23mm available (not included) |
|
|
Eyeshades on both eyepieces |
|
|
The eyepieces can be locked on with set screws to prevent students from removing them. |
|
|
Zooming Body |
Standard objective zooming magnification: 0.66X ~ 5X, Zoom ratio: 1:7.6, parfocal, working distance 110mm |
|
Ergonomically positioned dual, graduate, bilateral zoom control knobs |
|
|
Auxiliary objectives: 0.5X/189mm working distance, 2.0X/36mm working distance available (not included) |
|
|
Working Distance |
Standard working distance of 110mm, working distance range 36mm~189mm with auxiliary lens |
|
Focusing Arm |
Heavy duty rack and pinion focusing with slip clutch |
|
Two focusing knobs with tension adjustment, 140mm focus distance range |
|
|
Stage |
Includes one 99.5mm glass stage plate and one 99.5mm reversible black/white stage plate. |
|
Locked-on spring-mounted stage clips |
|
|
2D Travelling stage available (not included) |
|
|
Illumination |
Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted independently |
|
Bottom light: transmitted LED light. Brightness can be continuously adjusted independently |
|
|
Built-in illumination system allows three ways of illumination: transmitted, incident, or dual lighting. |
|
|
Top and bottom lights are controlled respectively |
|
|
Imaging |
Trinocular head available 20/80 light splitting ratio. Trinocular synchronization imaging, eyepiece observation synchronized with digital imaging. The splitting of the light does not need to be switched. |
|
Built-in digital imaging unit, dependable performance, and convenient operation. |
|
|
0.7X focus adjustable C-mount, 0.5X focus adjustable C-mount, and 0.35X focus adjustable C-mount |
|
|
DN Series Digital Eyepiece Camera |
Advanced camera control; |
|
Capturing high-quality images. Great for observing live images on your screen and still images. |
|
|
Simply install the IS Capture easy to use the software. Compatible with Windows XP/7 /8 (32 & 64 bits) /Linux/ Mac |
|
|
Acquisition of still images and video. Available image types: JPEG, BMP, TIFF, and RAW. |
|
|
Extend depth of focus (Focus Stacking) |
|
|
Image management and image stitching |
|
|
High dynamic range (HDR) function |
|
|
Fluorescence imaging settings; fluorescence combination function for still images |
|
|
Live image measurements; still image measurement |
