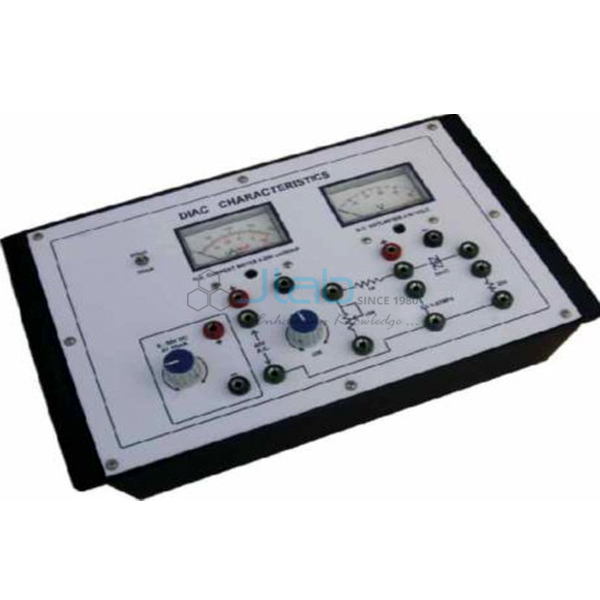

Training Board for DIAC

Training Board for DIAC

Product Code : JA-AET-1462

DIAC characteristics

Object:

To plot V-I Characteristics of a DIAC and study the following:

  • Break over voltage, VBO
  • Negative resistance region
  • VBO symmetry and delta V

To study the applications of a DIAC as:

  • Saw tooth waveform generator
  • Pulse train generator

Features:

The board consists of following built-in parts:

  • 0-50V D.C. at 50mA, regulated Power Supply
  • 45V A.C. at 50mA, unregulated Power Supply
  • D.C. Voltmeter, 65mm rectangular dial to read 0-50V D.C
  • D.C. Ammeter, 65mm rectangular dial with switch selectable ranges of 200mA and 50mA
  • DIAC
  • Potentiometer and adequate no. of other electronic components
  • Mains ON/OFF switch, Fuse and Jewel light
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References

Other Apparatus Required:

  • Cathode Ray Oscilloscope 20MHz
