Training System Pressure Control
Product Code : JA-AM-6470

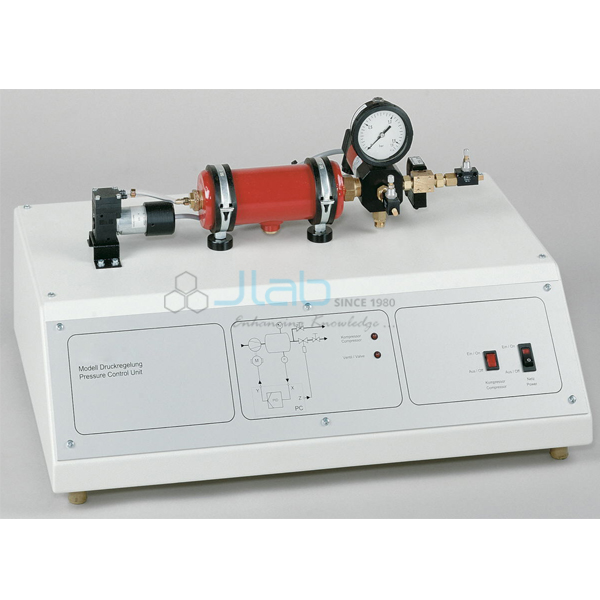

The Training System Pressure Control (SKU JA-AM-6470) is a compact teaching unit for learning the fundamentals of process control on a pressure system. A diaphragm gas pump charges a process tank with air, a dial-gauge manometer shows the pressure directly and a pressure sensor sends the signal to a software controller, which sets the pump speed. An air consumer is simulated by a restrictor valve, and a solenoid valve is included in the circuit. It is supplied by JaincoLab for control engineering laboratories.
Specifications
The unit has a process tank, a speed-controlled diaphragm gas pump, a dial-gauge manometer, a pressure sensor, a restrictor valve as simulated consumer and a solenoid valve, all mounted on a housing that contains the electronics; pressure range and power supply are not listed in the product data and are confirmed on the quotation.
| Product | Training System Pressure Control |
| SKU | JA-AM-6470 |
| Process | Air pressure in a process tank |
| Pump | Diaphragm gas pump, speed set by controller |
| Measurement | Pressure sensor; dial-gauge manometer |
| Disturbance | Restrictor valve as simulated air consumer; solenoid valve |
| Construction | Solid housing containing the electronics |
| Controller | Software controller |
Experiments with the pressure control training system
Students set a pressure set point, open the restrictor to simulate air use and tune the software controller so the tank pressure recovers quickly and stably.
- Closed loop pressure control
- Controller tuning on a gas pressure process
- Disturbance response to changing air consumption
- Comparing sensor and manometer readings
- Control engineering practicals
Scope of supply and ordering
This listing covers the pressure control training system as described. Accessories, spares and quantities are confirmed on the quotation. Software and PC are confirmed on the quotation.
Packing, lead time and any minimum order for the Training System Pressure Control are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
How is the tank pressurised?
By a diaphragm gas pump whose speed is set by the controller.
How is pressure measured?
With a pressure sensor for the controller and a dial-gauge manometer for direct reading.
How is air consumption simulated?
With a restrictor valve.
