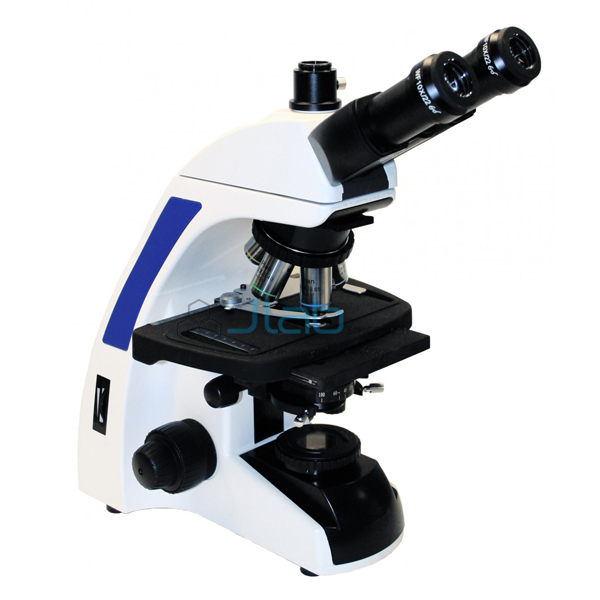

Advanced Infinity Corrected Trinocular Microscope

Viewing Head

JAab trinocular head which will not change the length in the eyepiece tubes when interpupillary distance adjustments are made

30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements

Interpupillary adjustment of 48mm-75mm

Eyepiece

Wide field (WF)10x/22mm

High eyepoint, with eyeguard

Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time.

Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included)

Nosepiece

Revolving reversed quintuple objective nosepiece accepts five objectives which are color-coded, parcentered and parfocaled.

The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.

Objectives

Infinity corrected, high contrast (HC) Plan Achromatic DIN 4X/0.10 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 10X/0.25 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 20X/0.40 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 40XR/0.65 ∞/0.17

Infinity corrected, high contrast (HC) Plan Achromatic DIN 100XR/1.25 oil ∞/0.17

40XR and 100XR objectives are retractable which have resilient mounts for specimen protection

Focusing System

Low position coaxial coarse and fine focus knobs

37.7mm per coarse rotation

0.1mm per fine rotation, fine focus graduation of 1um

Focusing range 16mm

Tension adjustment eliminates focus drift

Stage

216mmx150mm built-in double layer mechanical stage

Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm

Non-extending rack

Graphite surface, rounded edges

Illumination

Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination

N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen

Adjustable aperture  iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field;  a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm.

5w LED for optimum illumination and contrast

With light intensity control

Imaging

Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera  and 8'' LCD camera available to capture images and view live video of the specimen on a computer or screen.

0.5x C-mount included

Other characters

Ergonomically designed metal frame for stability and durability

Carrying handle integrated in the back of the stand for easy carrying

Arm and base made of one piece construction

Antifungal treatment prevents fungal growth

Cord holder for convenient storage

Optional Accessory

Dark field kit

Available (not included)

Phase contrast kit

Polarizing kit
