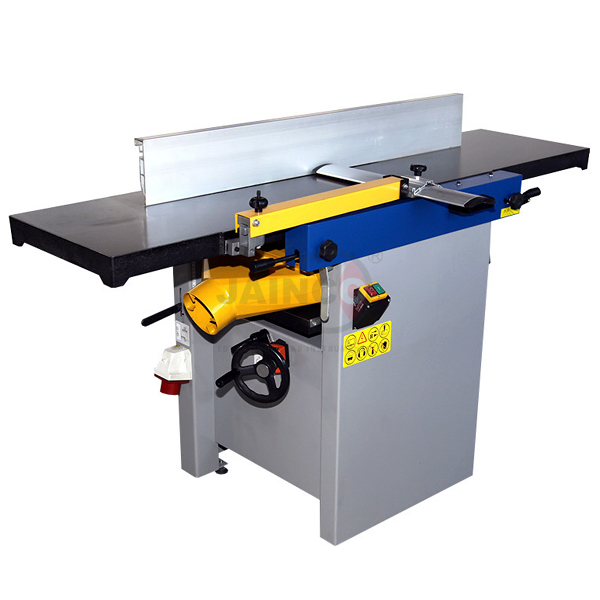

Combination Surface Planer and Thicknesser
Product Code : JA-WWPT-8701
The combination surface planer and thicknesser flattens and then thicknesses timber on one machine in joinery workshops. A motor listed as 4 kW / 3 hp drives a 70 mm, three-knife cutter block at 5500 rpm; it planes up to 408 mm wide, thicknesses 3 to 225 mm stock at a 7 m/min feed, and has a 1660 x 410 mm planer table and 600 x 408 mm thicknessing table (SKU JA-WWPT-8701).
Specifications
Listed specification:
| Product | Combination Surface Planer and Thicknesser |
| SKU | JA-WWPT-8701 |
| Motor | 4 kW / 3 hp (as listed) |
| Maximum blade size | 254 mm |
| Maximum planing width | 408 mm |
| Thickness height | 3 to 225 mm |
| Maximum chip removal | Thicknesser 4.5 mm; planer 3 mm |
| Feed speed | 7 m/min |
| Cutter block | 70 mm diameter, 5500 rpm, 3 knives |
| Out-feed roller | Rubber, 32 mm diameter |
| Tables | Planer 1660 x 410 mm; thicknessing 600 x 408 mm |
| Fence tilt | 45 to 90° |
| Dust outlet | 120 mm |
| Machine dimensions | 1660 x 870 x 1000 mm |
| Packing size | 1670 x 690 x 980 mm |
Scope of supply and ordering
The listing covers one combination surface planer and thicknesser, supplied by JaincoLab.
Frequently asked questions
What thickness range can it handle?
Stock from 3 to 225 mm thick, at a feed speed of 7 m/min.
How much can be removed in one pass?
Up to 4.5 mm on the thicknesser and 3 mm on the planer.
How wide can it plane?
Up to 408 mm.
