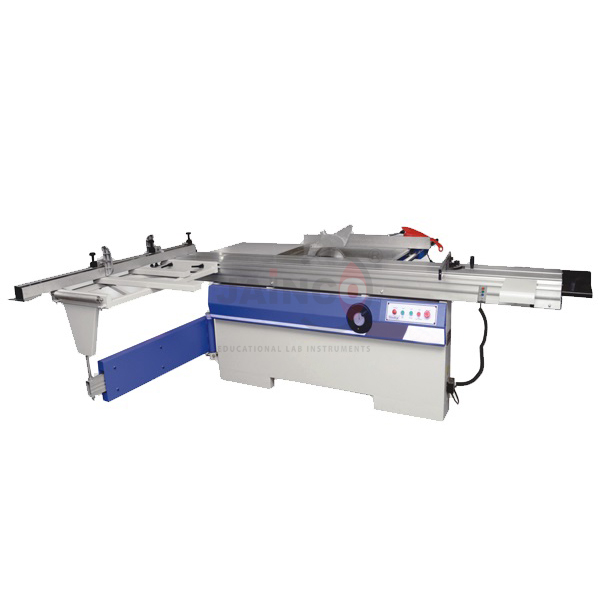

Dimension Saw Machine
Product Code : JA-WWPT-8703
The dimension saw machine is a sliding-table panel saw for cutting boards and panels to size in joinery workshops. It has a 3000 x 320 mm sliding table with 3000 mm cross-cut capacity, 1250 mm rip width, a 300 mm main blade on a 30 mm spindle at 4000/6000 rpm tilting 0 to 45°, a 3 kW main motor and a 120 mm scoring saw on a 1.1 kW motor (SKU JA-WWPT-8703).
Specifications
Listed specification:
| Product | Dimension Saw Machine |
| SKU | JA-WWPT-8703 |
| Sliding table | 3000 x 320 mm |
| Cross-cut capacity | 3000 mm |
| Rip width (blade to fence) | 1250 mm |
| Main saw blade | 300 mm diameter (250 to 300 mm) |
| Height of cut (300 mm blade) | 80 mm |
| Main spindle | 30 mm; 4000/6000 rpm |
| Blade tilt | 0 to 45° |
| Main motor | 3 kW |
| Scoring saw | 120 mm blade; 7000 to 8000 rpm; 1.1 kW motor |
| Features | Quick-release cross-cut fence; sliding table; cast-iron cradle for the saw carriage; handwheel height and tilt adjustment; manual scorer adjustment; tilt index; overhead saw guard |
Scope of supply and ordering
The listing covers one dimension saw machine, supplied by JaincoLab; saw blades are quoted separately.
Frequently asked questions
What is the rip capacity?
1250 mm between the saw blade and the rip fence.
Does it have a scoring saw?
Yes, a 120 mm scoring saw with its own 1.1 kW motor and manual adjustment.
How deep can it cut?
80 mm with a 300 mm main blade.
Related products
More items of this type are listed in the wood workshop machine range.
Request a quote
Use the contact page to ask for a quotation on the Dimension Saw Machine, giving the SKU JA-WWPT-8703 and the quantity. Institutions and contractors buying under a tender can also reach us via the tenders page.
