Crystal Structures Set Model
Product Code : JL-LEP-10342

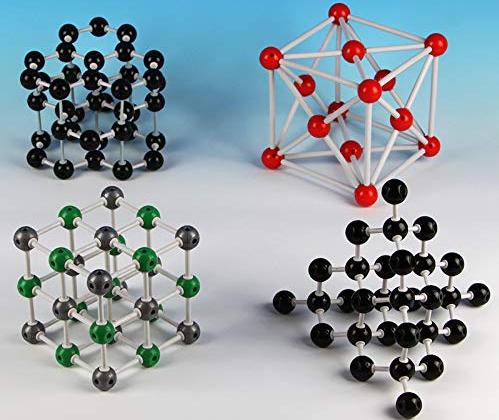

The Crystal Structures Set Model (SKU JL-LEP-10342) is an open, ball-and-stick model set for building ionic, covalent, molecular and metallic crystal lattices in chemistry classes. This crystal structures model lets students compare the structures of diamond and graphite, see how bonding differs between crystal types and judge polarity from structure. It uses polypropylene spheres with flexible polyethylene links, and JaincoLab manufactures it in India.
Specifications
The set builds open ball-and-stick crystal models from solid polypropylene spheres (23 mm for sodium and carbon, 25 mm for copper, 32 mm for chlorine) joined by low-density polyethylene links: rigid single-bond medium links of 19–27 mm and flexible double or triple-bond long links of 43 mm.
| Product | Crystal Structures Set Model |
| SKU | JL-LEP-10342 |
| Purpose | Represents ionic, covalent, molecular and metallic crystals, compares diamond and graphite structures, and lets students observe bond differences and judge polarity |
| Model type | Open / ball-and-stick |
| Atom parts | Solid spheres |
| Sphere material | Polypropylene |
| Sphere size | Sodium and carbon 23 mm; copper 25 mm; chlorine 32 mm |
| Link types | Medium (single, rigid) and long (double/triple, flexible) |
| Link material | Flexible low-density polyethylene (LDPE) solid links |
| Link length | Medium 19–27 mm; long 43 mm |
| Link colour | Medium grey/white/purple; long grey |
| Specification reference | As per DepEd guidelines |
Applications of the crystal structures model
Chemistry teachers use the crystal structures model to show how particles are arranged in the four main types of crystalline solid, and to explain properties such as hardness and conductivity by comparing lattices such as sodium chloride, copper, diamond and graphite.
- Building a sodium chloride lattice to illustrate ionic crystals
- Assembling copper as an example of a metallic lattice
- Comparing the covalent structures of diamond and graphite
- Discussing molecular crystals and the bond types found in each lattice
- Solid-state chemistry lessons in senior secondary chemistry and B.Sc. classes
Scope of supply
This listing covers the crystal structures set of spheres and links described in the specification table. Accessories, spares, piece counts and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are stated on the quotation for the number of sets and the delivery destination. We handle orders from individual schools and colleges, bulk requirements from education departments and export orders for Africa, the Middle East and South and South-East Asia.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
Which crystal types can be built?
The set represents ionic, covalent, molecular and metallic crystals and lets students compare diamond and graphite.
What sizes are the spheres?
Sodium and carbon spheres are 23 mm, copper spheres 25 mm and chlorine spheres 32 mm.
What links are included?
Medium single, rigid links of 19–27 mm and long double or triple, flexible links of 43 mm, made of low-density polyethylene.
What type of model is it?
It is an open, ball-and-stick model using solid polypropylene spheres.
What should a quote request include?
Send the SKU JL-LEP-10342, the number of sets and the delivery destination.
Related products
Chemistry model sets often ordered with the crystal structures set:
Browse chemistry lab equipment or the Laboratory Equipment Products range from JaincoLab, a school lab equipment manufacturer in India.
Request a quote
For a quotation on the Crystal Structures Set Model, send the number of sets and delivery destination through the JaincoLab contact page or email [email protected].
