Differential Phase Shift Keying Modulation and Demodulation

Differential Phase Shift Keying Modulation and Demodulation

Product Code : JA-CT-1509

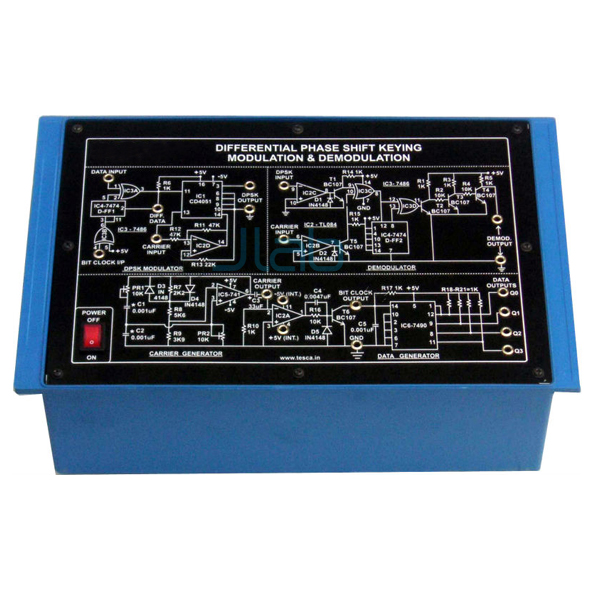

Differential Phase Shift Keying  Modulation and Demodulation


Features:

The board consists of the following built-in parts :
± 5V D.C. at 100mA IC regulated Power Supply internally connected

IC-1 for generating DPSK (Differential Phase Shift Keying) signal

IC-5 for generating Carrier signals

IC-2A for generating Bit Clock

IC-6 for generating different Datas

IC-2 B & C, IC-3 C & D, IC-4 D-FF2 and Transistor 2, 3 & 4 are used as Demodulator

Adequate no. of other electronic components

Mains ON/OFF switch, fuse and jewel light

The unit is operative on 230V ±10% at 50Hz A.C. Mains

Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References


Other Apparatus Required:
Dual Trace Cathode Ray Oscilloscope 20MHz
