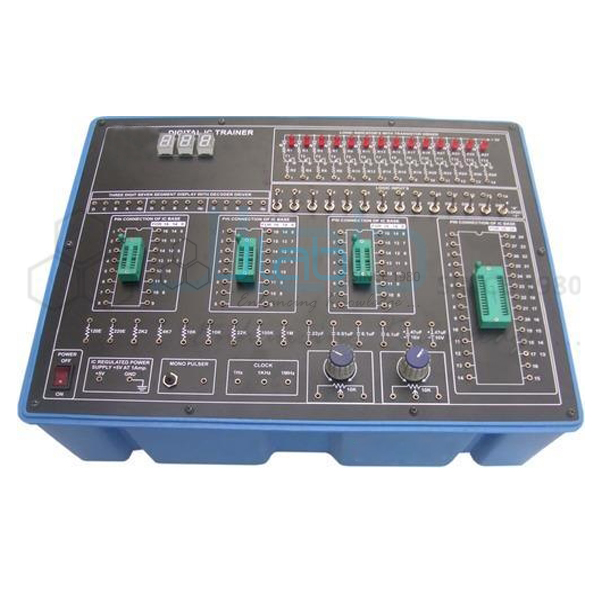

Digital IC Trainer
Product Code : JA-DET-1518
Digital IC Circuits
The board is designed to train students of Engineering Colleges & Polytechnic Laboratories, in Digital IC circuits.
Digital IC Trainer is a completely self contained, most versatile, sophisticated and economical.
The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.
Features:
Fully self sufficient with IC Regulated 5V at 1Amp. Power Supply, input logic switches, clock generator, mono pulser
LED logic indicators, 3 digit Seven Segment Displays and provision to take-out output for monitoring
Sockets for ICs, reliable connections using excellent quality sockets
Wiring of all types of experiments become simple and less time consuming
Adequate no. of other Electronic Components
The unit is operative on 230V ±10% at 50Hz A.C. Mains
Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggest
tons and Book Refer OMEGA TYPE LTB-817 ences.
Two copies each with the trainer board
Weight : 8 Kg. (Approx.)
Dimension : W 412 x H 150 x D 310
Specifications:
+ 5V D.C. at 1Amp, IC Regulated Power Supply
Eight, two position toggle switches prewired to give binary logic input states
Eight, LED logic indicators with transistor drivers
3 digit Seven Segment Displays with decoder driver
Clock :- 1 Hz, 1 kHz and 1 MHz
Single pulse from mono pulser
IC Bases :
16 Pin DIP/ZIF : 3 Nos
28 Pin DIP/ZIF : 1 Nos
