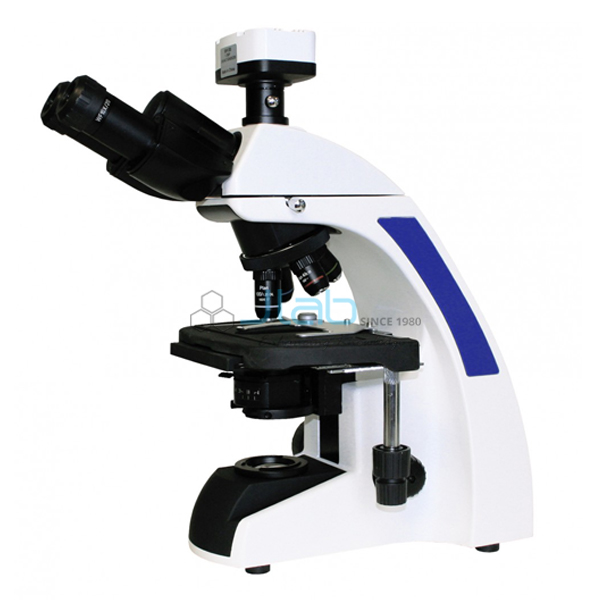

Digital Trinocular Microscope 5W LED Kohler Illumination
Product Code : JA-M-8077
Microscope Specifications:-
|
Viewing Head |
JAab trinocular head which will not change the length of the eyepiece tubes when interpupillary distance adjustments are made |
|
30° inclined and 360° rotatable, fully up or down swiveled eyepiece tubes to adjust the viewing height to meet individual requirements |
|
|
Interpupillary adjustment of 48mm-75mm |
|
|
Eyepiece |
Widefield (WF)10x/22mm |
|
High eyepoint, with eyeguard |
|
|
Both eyepieces are diopter adjustable, which allows the image and reticule to be brought into focus at the same time. |
|
|
|
Optional reticule eyepiece for measurement purposes; choice of 0.1mm/1cm grid, 0.1mm/1cm cross or plain cross hair available (not included) |
|
Nosepiece |
Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled. |
|
The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification. |
|
|
Objectives |
Plan Achromatic DIN 4X/0.10 160/0.17 |
|
Plan Achromatic DIN 10X/0.25 160/0.17 |
|
|
Plan Achromatic DIN 40XR/0.65 160/0.17 |
|
|
Plan Achromatic DIN 100XR/1.25 oil 160/0.17 |
|
|
40XR and 100XR objectives are retractable which have resilient mounts for specimen protection |
|
|
Focusing System |
Low position coaxial coarse and fine focus knobs |
|
37.7mm per coarse rotation |
|
|
0.1mm per fine rotation, fine focus graduation of 1um |
|
|
Focusing range 16mm |
|
|
Tension adjustment eliminates focus drift |
|
|
Stage |
216mmx150mm built-in double layer mechanical stage |
|
Smooth X/Y calibrated movement with cross travel range 7.5cm x 5.5cm |
|
|
Non-extending rack |
|
|
Graphite surface, rounded edges |
|
|
Illumination |
Built-in Kohler illumination with field diaphragm, provides uniformly bright and free-from-glare specimen illumination |
|
N.A. 1.25 Abbe condensers which height is controlled by a rack and pinion gear system that allows the condenser focus to be adjusted for proper illumination of the specimen |
|
|
Adjustable aperture iris diaphragm incorporated into the condenser, which is important in securing correct illumination, contrast, and depth of field; a graduated scale indicates the approximate adjustment (size) of the aperture diaphragm. |
|
|
5w LED for optimum illumination and contrast |
|
|
With light intensity control |
|
|
Imaging |
Trinocular phototube (50% vis, 50% doc) with 5MP/10MP digital eyepiece camera available to capture images and view live video of the specimen on a computer or screen. |
|
0.5x C-mount included |
|
|
Other characters |
Ergonomically designed metal frame for stability and durability |
|
Carrying handle integrated in the back of the stand for easy carrying |
|
|
Arm and base made of one piece construction |
|
|
Antifungal treatment prevents fungal growth |
|
|
Cord holder for convenient storage |
|
|
Optional Accessory
Available (not included) |
Dark field kit |
|
Polarizing kit |
|
|
1x C-Mount |
|
|
DN Series Digital Eyepiece Camera |
Advanced camera control |
|
Capturing high quality images. Great for observing live images on your screen and still images. |
|
|
Simply install the ISCapture easy to use software. Compatible with Windows XP/7 /8(32 &64 bits) /Linux/ Mac |
|
|
Acquisition of still images and video. Available image types: JPEG, BMP, TIFF and RAW. |
|
|
Extend depth of focus (Focus Stacking) |
|
|
Image management and image stitching |
|
|
High dynamic range (HDR) function |
|
|
Fluorescence imaging settings; fluorescence combination function for still images |
|
|
Live image measurements; still image measurement |
Camera Specification:-
|
Pixel size(μm) |
1.67 × 1.67 |
2.2 × 2.2 |
|
Effective pixels |
10.0MP |
5.0MP |
|
Max. Resolution (H×V) |
3664 × 2748 |
2592 × 1944 |
|
Scan mode |
Progressive |
Progressive |
|
Shutter |
Rolling shutter |
Rolling shutter |
|
Frame rate |
3fps (3856 × 2764) |
5fps (2592 × 1944) |
|
8fps (1832 × 1370) |
21fps (1280 x 960) |
|
|
28fps (916 × 680，4 × 4Bin) |
25fps (1024 × 768) |
|
|
-- |
38fps (640 × 480) |
|
|
Color depth |
24bit |
24bit |
|
Exposure Control |
Manual/Auto |
Manual/Auto |
|
Integration Time (S) |
0.001 - 1 |
0.001 - 0.8 |
|
White Balance |
Manual/Auto |
Manual/Auto |
|
Operating humidity |
45% - 85% |
45% - 85% |
|
Operating system |
Windows / Linux / Mac |
Windows / Linux / Mac |
|
Data interface |
USB2.0/480Mb/s |
USB2.0/480Mb/s |
