Double Burette Clamp
Product Code : JL-LEP-10263

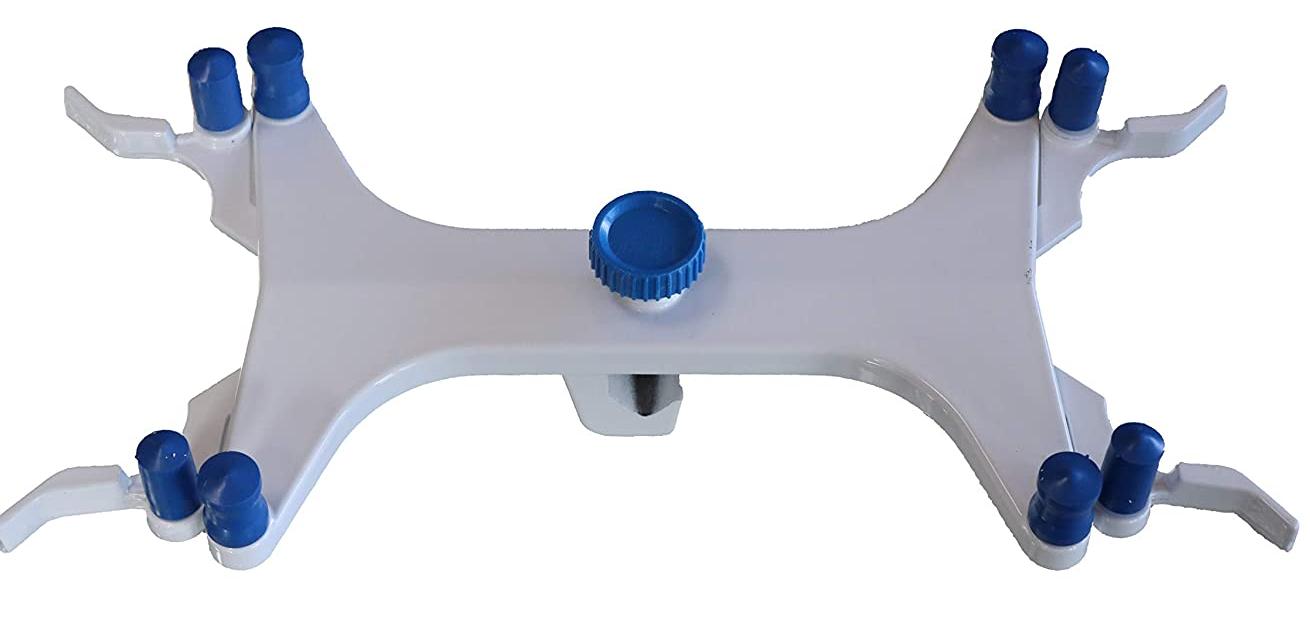

The Double Burette Clamp (SKU JL-LEP-10263) holds two burettes side by side on a support rod. It is a double Y or butterfly shape in die-cast aluminium with a chemical-resistant white enamel finish, 245 to 254 mm long and 120 to 127 mm wide. The double burette clamp has four spring-action clamps, two on each opening, with vinyl or rubber grips at least 85 mm apart, and it takes burettes from 10 mL to 100 mL. A built-in hook mounts it on rods up to about 16-17 mm. JaincoLab supplies it as per DepEd guidelines.
Specifications
The clamp is specified by shape, body, size, grips, range and mounting: butterfly shape, white-enamelled die-cast aluminium, 245-254 x 120-127 mm, a 15 mm mounting hole, 4 spring-action clamps with vinyl or rubber grips, a 15-36 mm clamping range and burettes of 10-100 mL.
| Product | Double Burette Clamp |
| SKU | JL-LEP-10263 |
| Shape | Double Y / butterfly shape with spring-action clamps |
| Body material | Die-cast aluminium, chemical-resistant white enamel finish |
| Length | 245 - 254 mm |
| Width | 120 - 127 mm |
| Mounting hole diameter | 15 mm |
| Grips | Vinyl or rubber; blue, red or black |
| Distance between grips | 85 mm (min) |
| Clamping range | 15 - 36 mm |
| Clamping mechanism | 4 spring-action clamps (2 per opening) with white adjusting knobs, or squeeze mechanism |
| Mounting | Direct to a standard support rod with built-in hook connector |
| Burette compatibility | 10 mL to 100 mL |
| Support rod compatibility | 5/16 in and 1/2 in, up to about 16 - 17 mm |
| Specification reference | As per DepEd guidelines |
Applications of the double burette clamp
The clamp is used in titration set-ups where two burettes are needed together. Typical uses are:
- Holding acid and base burettes on one stand
- Back titrations that use two titrants
- Class demonstrations of burette reading
- Keeping burettes vertical during group practicals
Scope of supply
Each unit is one double burette clamp, as described in the specification table. Burettes, stands and support rods are separate items; accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, packing and lead time are confirmed on the quotation for the quantity and destination. JaincoLab supplies schools, colleges and education projects, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How many burettes does the clamp hold?
Two, from 10 mL to 100 mL.
What is it made of?
Die-cast aluminium with a chemical-resistant white enamel finish.
Which rods does it fit?
Standard support rods of 5/16 in and 1/2 in, up to about 16-17 mm.
What should a quotation request include?
Send the SKU JL-LEP-10263, the quantity and the delivery destination.
