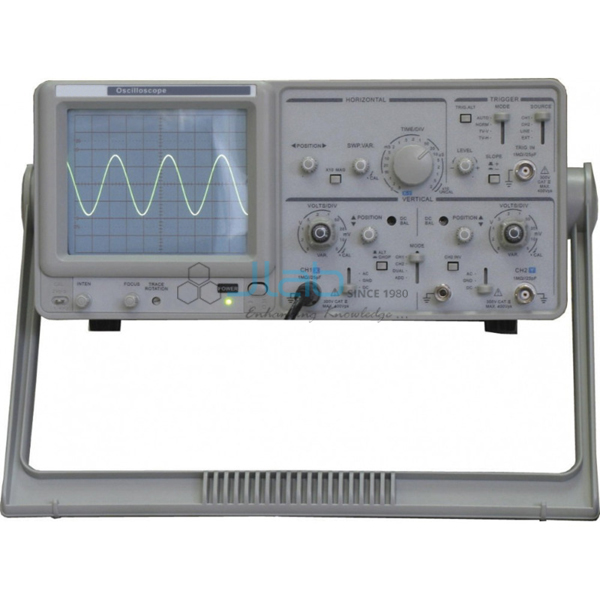

Dual Channel Oscilloscope

Dual Channel Oscilloscope

Product Code : JA-SW-7614

Dual Channel Oscilloscope
Specification:
High Sensitivity 1Mv DIV
CH1 and CH2 Independent Channels
20MHz Dual channel
5mV/div sensitivity on both channels
Two waveforms in different frequency can be observed via alternative trigger function
CH1 signal output
X-Y operation
0.2 is/div to 0.5s/div Time base (Uncal up to 20ns)
Z modulation TTL Level
High- Speed Sweep
ALT Triggering
Algebraic Addition and Subtraction
8x 10 CM Display internal Graticule
TV Signal synchronous function, TV Triggering Frame (V) & Line (H)
Line Trigger

Description:
Dual- channel 20MHz oscilloscope with the maximum sensitivity of 5mV/DIV.
When magnified by 10, the sweep speed is 20nS/DIV.
The time base provides a maximum sweep time of 0.2uS/DIV.
Microphone included.
This Oscilloscope employs a 6-inch rectangular type cathode ray tube with red internal graticule.
