Electrical Conductivity Apparatus
Product Code : JL-LEP-10395

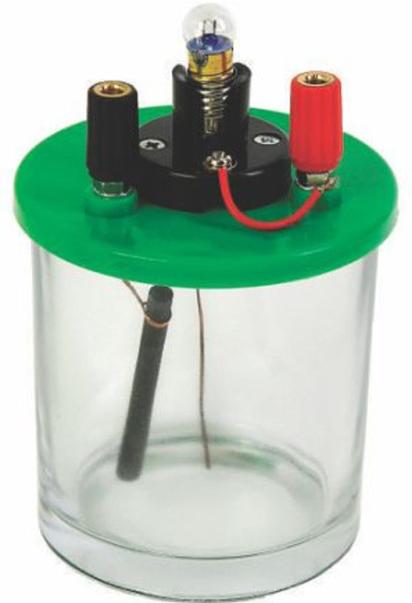

The Electrical Conductivity Apparatus (SKU JL-LEP-10395) gives a visual demonstration of whether a liquid or solution conducts electricity, distinguishing electrolytes from non-electrolytes. The electrical conductivity apparatus has a 200 mL borosilicate jar with a PVC cover, copper and carbon electrodes wired in series with a 3 V lamp, and runs on two AA cells or a 0–12 V DC supply. JaincoLab manufactures it in India for school chemistry.
Specifications
The apparatus consists of a 200 mL flat-bottomed borosilicate jar (72–75 mm by 75–80 mm) with a green PVC cover carrying a 60 mm copper wire anode and a 60 mm carbon rod cathode on binding posts, a 3.0 V indicator lamp in series, an AA battery holder, a 0–12 V DC supply option and two leads with alligator clips.
| Product | Electrical Conductivity Apparatus |
| SKU | JL-LEP-10395 |
| Purpose | Visual demonstration of the electrical conductivity of liquids and solutions, distinguishing electrolytes from non-electrolytes |
| Jar | Cylindrical, flat-bottomed, clear bubble-free borosilicate glass; 72–75 mm diameter, 75–80 mm high, 200 mL |
| Jar cover | Green PVC, fits the glass jar |
| Indicator lamp | 3.0 V lamp in series with open electrodes; moulded plastic socket; miniature bulb included |
| Electrodes | Copper wire (anode) and carbon rod (cathode), 60 mm long, connected to two binding posts |
| Power sources | 2 AA batteries with holder; or a 220–240 V AC input / 0–12 V DC output supply with selector switch |
| Connecting wires | Two 12 in, 20 gauge stranded wires (red and black) with alligator clips |
| Specification reference | As per DepEd guidelines |
Applications of the electrical conductivity apparatus
Students fill the jar with a test liquid and watch the lamp: a bright glow shows a strong electrolyte, a dim glow a weak electrolyte and no glow a non-electrolyte, which leads into lessons on ions in solution.
- Testing tap water, distilled water, salt solution and sugar solution for conductivity
- Comparing strong and weak electrolytes by the brightness of the lamp
- Showing that ionic compounds conduct when dissolved in water
- Linking conductivity to the presence of ions in chemistry lessons
- Electrochemistry introductions in secondary science and chemistry
Scope of supply
The listing covers the jar with cover, electrodes, lamp and socket, battery holder, DC power source and leads described in the specification table. AA cells, spare bulbs and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation sets out the MOQ, lead time and packing for the number of sets and the delivery destination. JaincoLab supplies school chemistry laboratories, colleges and export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the conductivity apparatus show?
Whether a liquid or solution conducts electricity, distinguishing electrolytes from non-electrolytes by the lamp.
Which electrodes are fitted?
A copper wire anode and a carbon rod cathode, each 60 mm long, on two binding posts.
How is it powered?
By 2 AA batteries in a holder, or by a 220–240 V AC input / 0–12 V DC output supply with selector switch.
What is the jar capacity?
200 mL, in clear borosilicate glass with a PVC cover.
What should a quotation request include?
Send the SKU JL-LEP-10395, the number of sets and the delivery destination.
