Engine Model
Product Code : JL-LEP-10390

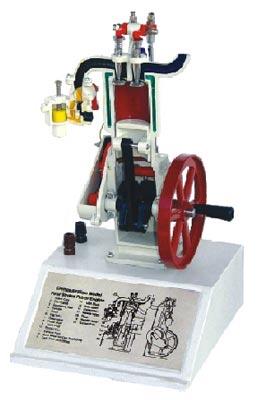

The Engine Model from Jaincolab is used to simulate the operation of a 4-stroke cycle gasoline engine. As a school laboratory equipment manufacturer, Jaincolab supplies this cross-section engine model as part of a wider range of mechanics lab equipment used for demonstrations in schools and colleges across India. With a hand-rotatable crankshaft, illuminated spark plug simulation and correctly labelled parts, it is built for reliable, repeated classroom demonstration use.
Specification Detail
| Product Name | Engine Model |
| Product Code / SKU | JL-LEP-10390 |
| Purpose | Used to simulate the operation of a 4-stroke cycle gasoline engine |
| Model Type | Cross section model of a 4-stroke cycle gasoline engine |
| Size | 14 x 8 x 7 inches minimum |
| Material | Cast alloy construction, mounted on a stable base |
| Internal Detail | Internal sections in different colors indicating air, fuel and gas mixtures and exhaust gas contents; carburetor shown in section |
| Operation | Crankshaft rotated by hand wheel to simulate the operating cycle, with electrical contact illuminating a 3-volt lamp as a spark plug to simulate ignition |
| Labelled Parts | Crank case, crank shaft, connecting rod, cylinder block, piston, intake valve, exhaust valve, push rod, spark plug, rocker arm, exhaust manifold, crank shaft gear, cam shaft gear, cam shaft, contact point, carburetor, needle valve, float, throttle valve, intake manifold |
| Standard | As per DEPED Guidelines (manufacturer-stated) |
Key Features
- Cross-section engine model simulating the complete operating cycle of a 4-stroke cycle gasoline engine
- Hand wheel rotates the crankshaft so students can observe each stage of the 4-stroke cycle in sequence
- Electrical contact illuminates a 3-volt lamp as a spark plug to simulate ignition at the correct point in the cycle
- Internal sections shown in different colors to distinguish air, fuel, gas mixtures and exhaust gas
- Base carries an illustration with correctly labelled part names for over 15 major engine components
- Durable cast alloy construction mounted on a stable base for repeated classroom demonstration
Why Choose Jaincolab
Jaincolab is a school laboratory equipment manufacturer and exporter supplying schools, colleges and institutions across India and internationally. Every Engine Model is checked for crankshaft movement and spark plug lamp function before dispatch. As specialists in mechanics lab equipment and demonstration apparatus, we supply this engine model alongside related classroom resources including the Lamp Desk Heavy Base and the Flashlight with Incandescent Bulb, so schools can standardise on one trusted source of science teaching equipment. Browse our full Laboratory Equipment Products collection for the complete range.
Certifications: manufacturer-stated ISO 9001:2015 and ISO 14001:2015 — verify before publishing.
Applications
| Application | Use Case |
|---|---|
| Mechanics and Engineering Demonstrations | Illustrating the intake, compression, power and exhaust strokes of a gasoline engine |
| Automobile Engineering Practicals | Teaching engine component identification and ignition timing concepts |
| Physics Thermodynamics Lessons | Supporting lessons on internal combustion, energy conversion and mechanical work |
| Technical and Vocational Training | Hands-on reference model for students studying automotive and mechanical trades |
| Science Laboratory Demonstrations | Classroom apparatus support requiring a clear, working cross-section model |
Frequently Asked Questions
Q1: What is this engine model used for?
A1: It is used to simulate the operation of a 4-stroke cycle gasoline engine.
Q2: How is the engine cycle demonstrated?
A2: The crankshaft can be rotated by a hand wheel to simulate the operating cycle of the 4-stroke engine.
Q3: How is ignition simulated?
A3: An electrical contact illuminates a 3-volt lamp acting as a spark plug to simulate ignition.
Q4: What is the model made of?
A4: It has cast alloy construction and is mounted on a stable base.
Q5: Are the engine parts labelled?
A5: Yes, the base carries an illustration with correct part names for all major engine components.
Request a Quote
Need Engine Model or other mechanics lab equipment for your school or lab? Request a Quote from Jaincolab, a school laboratory equipment manufacturer serving customers across India and internationally.
