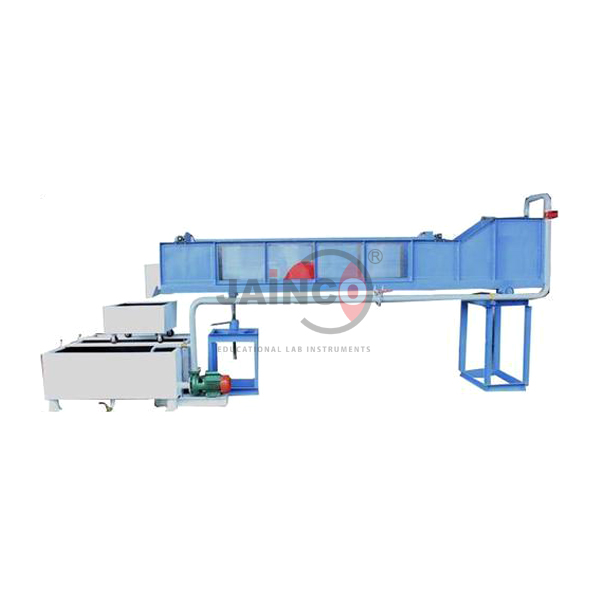

Experimental Flume

Experimental Flume

Product Code : JA-FMAHLE-9981

Experimental Flume
Specification:-
Experimental section with 10 evenly spaced threaded holes on the bottom for installing models or for Water level measurement using pressure.
Side walls of the experimental section are made of tempered glass for excellent observation of the experiments.
All surfaces in contact with water are made of corrosion-resistant materials.
Basic principles of open channel flow.
Closed water circuit with water tank, pump, flow rate sensor and manual flow adjustment.
Models from all fields of hydraulic engineering available as accessories.
Experimental flume with experimental section, inlet and outlet element and closed water circuit.
length of the experimental section 2, 5m.
Smoothly adjustable inclination of the experimental section.
Flow-optimised inlet element for low-turbulence entry into the experimental section.

Technical Data:-
Experimental section:-
Flow cross-section WxH: 86 x 300mm
Inclination adjustment: -0, 5...+3%
Length: 2,5m or 5m (with 1x HM 160.10)
Tank: 280L

Pump:-
Power consumption: 1,02kW
Max. head: 13, 7m
Max. flow rate: 22,5m³/h

Flow rate measuring range: 0...10m³/h
