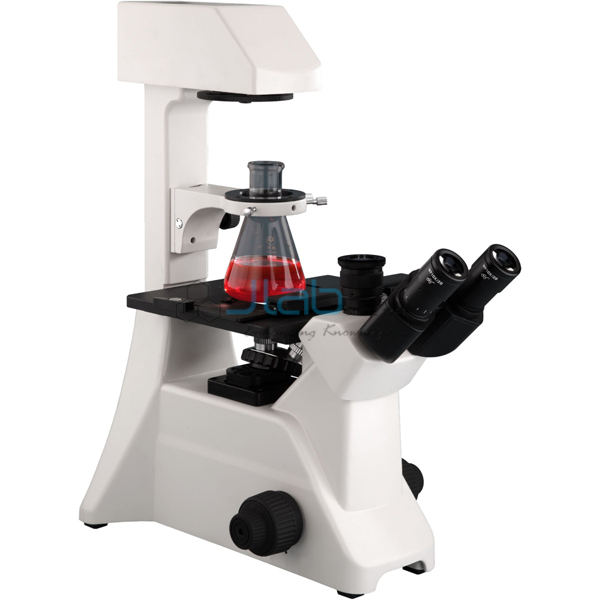

Inverted Microscope
Product Code : JA-M-8147
|
Viewing Head |
Jaincolab Tinocular head ensures eyepiece tube length when interpupillary distance adjustments are made |
|
100/0 or 20/80 light distribution (Binocular/ Camera port) |
|
|
45° inclined |
|
|
Eyepiece |
Wide field (WF)10x/20mm; High eyepoint |
|
Third centering piece included |
|
|
Nosepiece |
Quadruple objective nosepiece accepts four objectives |
|
The nosepiece runs on ball bearings with internal click stops so that the image remains centered after each magnification change. |
|
|
Filter |
Blue, green and gray |
|
Objectives |
10X Long working distance, plan objective, W.D.=7.9mm |
|
25X Long working distance, plan objective, W.D.=5.0 mm |
|
|
40X Long working distance, plan objective, W.D.=3.0mm |
|
|
Phase Contrast Objective |
25X, Ph+, Long working distance, plan objective, W.D.=5.0mm |
|
25X, Relief Phase Slide |
|
|
Focusing System |
Low position coaxial coarse and fine focus knobs |
|
Stage |
Stage size: 206mmx170mm |
|
Smooth X/Y calibrated movement with cross travel range: 128mm x 80mm ( left or right operation exchangeable) |
|
|
Condenser |
Slide Relief Phase Contrast Condenser N.A.0.35 W.D.=45mm |
|
Illumination |
Built-in Kohler illumination with field diaphragm, provides uniformly bright light |
|
6V/20W Halogen lamp |
|
|
Light intensity control |
|
|
Design |
Ergonomically designed metal frame for stability and durability |
|
Arm and base made from one piece construction |
|
|
Antifungal treatment prevents fungal growth |
