Light Guide Demonstrator
Product Code : JA-LOE-7897

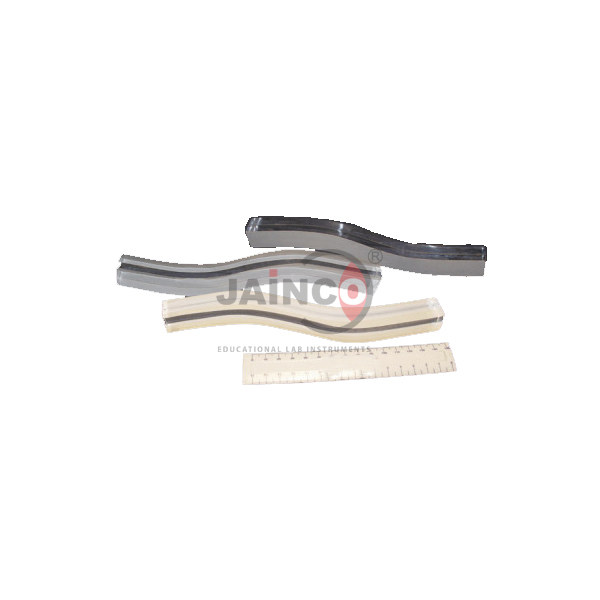

The Light Guide Demonstrator (SKU JA-LOE-7897) is an S-shaped acrylic bar, 220 x 20 x 20 mm, that carries a beam of light around its bends by total internal reflection when used with a ray box. The bottom face is painted white to make the path of the light easier to see, so a class can follow the beam as it reflects from wall to wall. This total internal reflection light guide helps students understand the principle behind optical fibres and optical communications, and is manufactured in India by JaincoLab.
Specifications
The demonstrator is a single S-shaped acrylic bar measuring 220 x 20 x 20 mm, with its bottom painted white to aid visibility, designed to be used with a ray box.
| Product | Light Guide Demonstrator |
| SKU | JA-LOE-7897 |
| Form | S-shaped bar |
| Material | Acrylic |
| Size | 220 x 20 x 20 mm |
| Finish | Bottom painted white to aid visibility |
| Used with | Ray box |
Applications of the total internal reflection light guide
The light guide is used in ray optics lessons to show that light entering one end of a transparent bar can be trapped inside it by total internal reflection and led around curves, which is the working principle of optical fibres.
- Demonstrating total internal reflection with a ray box beam
- Introducing optical fibres and optical communications
- Showing how the angle of incidence at a bend decides whether light escapes
- Linking refractive index and critical angle in senior-secondary optics
- Class demonstrations alongside prisms and semi-circular blocks
Scope of supply
Each unit is one S-shaped acrylic light guide bar. The ray box, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
The quotation sets out MOQ, packing and lead time for the number of light guides and the delivery destination. JaincoLab supplies single units, class sets and bulk orders for schools, colleges and education programmes, including export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the light guide demonstrator made of?
It is an S-shaped acrylic bar measuring 220 x 20 x 20 mm.
Why is the bottom painted white?
The white bottom face aids visibility, making the path of the light inside the bar easier to follow.
What else is needed for the demonstration?
A ray box to send a beam of light into one end of the bar.
What should a quotation request include?
Send the SKU JA-LOE-7897, the number of light guides, whether ray boxes are needed and the delivery destination.
Related products
See the full Light and Optics Equipment range or the complete catalogue from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Light Guide Demonstrator, send the quantity and delivery destination through the JaincoLab contact page or email [email protected].
