Model of Lancashire Boiler
Product Code : JA-AM-6082

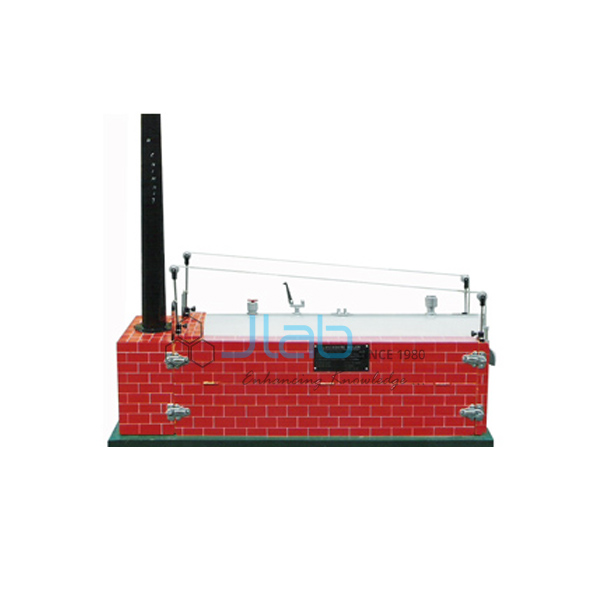

The Model of Lancashire Boiler (SKU JA-AM-6082) shows the Lancashire boiler, a horizontal boiler with two large fire tubes running from end to end of the shell. This Lancashire boiler model has a steel shell about 75 cm long and 22 cm in diameter, brickwork, seating and flues shown in wood, and a full set of mountings, and it is made dissectible for demonstration. JaincoLab makes it for thermal engineering teaching.
Specifications
The Model of Lancashire Boiler has a steel shell about 75 cm long and 22 cm in diameter with two fire tubes, is about 1 m long, 37 cm wide and 45 cm high overall, and is dissectible for demonstration.
| Product | Model of Lancashire Boiler |
| SKU | JA-AM-6082 |
| Boiler type | Lancashire (two fire tubes, end to end) |
| Shell | Steel sheet, about 75 cm long x 22 cm diameter |
| Furnace | Fire grate and hinged door at the front of each tube |
| Setting | Brickwork, seating and flues shown in wood |
| Mountings | Dead weight safety valve; high steam low water safety valve; check valve; steam and water gauges; manhole; mud hole; draught doors; dampers with counterweights; chimney |
| Overall size | About 100 x 37 x 45 cm (L x W x H) |
| Construction | Dissectible for demonstration |
Applications of the Lancashire boiler model
The Lancashire boiler model is used to show how the hot gases pass through the two fire tubes and then round the shell through the brickwork flues, and to identify each mounting on a horizontal fire tube boiler.
- Diploma and degree thermal engineering lessons on boilers
- ITI boiler attendant trade theory
- Comparing the Lancashire, Cochran and locomotive boilers
- Identification of boiler mountings in practical examinations
Scope of supply and ordering
The listing covers one dissectible Model of Lancashire Boiler with the mountings listed above. It is a teaching model only.
Frequently asked questions
What is the size of the Lancashire boiler model?
It is about 1 m long, 37 cm wide and 45 cm high, with a shell about 75 cm long and 22 cm in diameter.
Can the model be opened?
Yes. It is made dissectible for demonstration.
Which mountings are fitted?
Safety valves, check valve, steam and water gauges, manhole, mud hole, draught doors, dampers and chimney.
Related products
- Model of Cochran Boiler
- Model of Locomotive Boiler
- Model of Babcock and Wilcox Boiler
- Vertical Water Tube Boiler
More items of this type are listed in the anatomical models equipment range; the engineering lab equipment manufacturer in India page gives the complete JaincoLab range.
Request a quote
Request a price for the Model of Lancashire Boiler through the JaincoLab enquiry page, stating the quantity required and where it is to be delivered. Buying under a laboratory tender? Use our tenders page.
