Multi Purpose Teaching Flume
Product Code : JA-FMAHLE-9952
Multi Purpose Teaching Flume
Description:-
Available in different technical specifications, this Multi Purpose Teaching Flume features outstanding performance, low energy consumption, longer service life, sturdy design and cost-effectiveness.
Engineered and developed huge innovation & perfection, this flume is ideally utilized for measuring the velocity of flow.
The channel is equipped with a PVC inlet tank, and is developed for free discharge into the Hydraulics Bench.
The offered flume is mounted on a hard framework, and can be tilted by utilize of a calibrated screw jack that allows exact slope adjustment of the channel.
The inlet tank includes a stilling arrangement to spread the water flow out before to entry into the channel for ensuring smooth uniform flow.
A longitudinal scale set at the top of the channel allows depth gauges & Pitot-static tubes to be precisely located along the channel length.

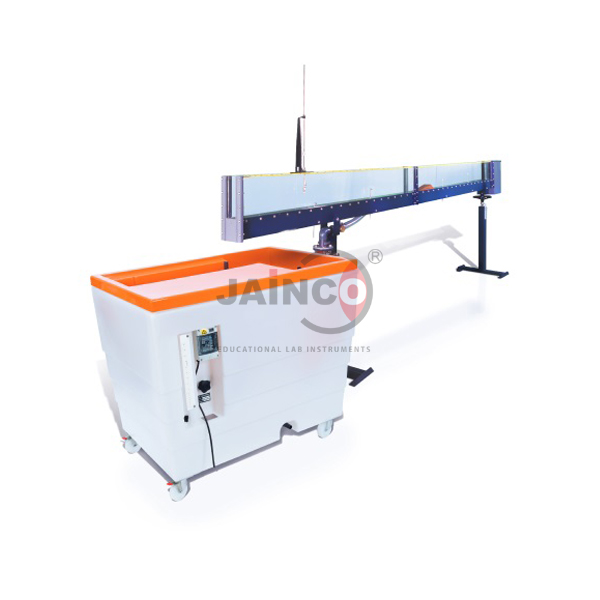

The is a compact open channel flume that is available in 2.5 m or 5.0 m lengths, with clean acrylic sides to the working part for complete visibility of the flow.
The level in the working part of the flume is controlled utilizing an overshot weir at the discharge end.
Bed pressure tappings & fixing points for models are provided.
Specification:-
Inlet tank with flow stilling arrangement.
Comprises a Venturi, sharp and broad crested weirs, two vernier level gauges, adjustable undershot weir & crump weir.
Available in 2.5m and 5.0m working section lengths.
A 76mm broad, 250mm high open channel for utilize with an Hydraulics Bench.
Clear acrylic sides to give visibility of the working section.
Wide range of other models available as accessories.
Optional flowmeter.
Comprehensive instruction manual.
A jacking system permits the slope of the channel bed to be adjusted between -1% and +3%.
A set of gauges & models are given with the flume as section of the standard supply, comprising:-
Venturi flume
Crump weir
2 Vernier level gauges
Sharp and broad crested weirs
Adjustable undershot weir
