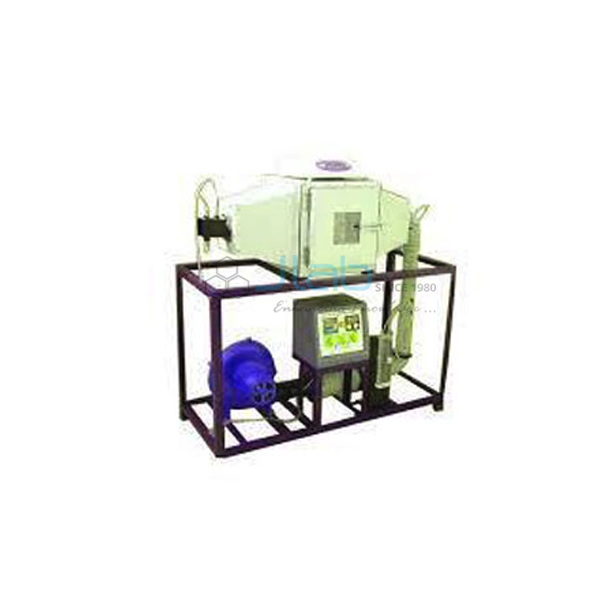

Natural Draft Tray Dryer
Product Code : JA-FMAHLE-7318
The Natural Draft Tray Dryer (SKU JA-FMAHLE-7318) studies how moisture is removed from a wet solid by hot air rising through the dryer under natural draft. The material sits on a tray, and its loss of weight is followed over time to give the drying curve. This natural draft tray dryer stands on a 500 x 500 x 750 mm support table and runs on a single-phase 230 V supply, with separate sockets for the heater and the weighing scale.
Specifications
The natural draft tray dryer is listed with a support table of 500 W x 500 D x 750 H mm, a 230 +/- 10 V AC, 50 Hz single-phase supply with a 5 A socket for the weighing scale and a 15 A socket for the heater, and 1 kg of sawdust as the test material. Chamber size and heater rating are confirmed on the quotation.
| Product | Natural Draft Tray Dryer |
| SKU | JA-FMAHLE-7318 |
| Drying mode | Natural draft of hot air |
| Support table | 500 W x 500 D x 750 H mm |
| Electric supply | 230 +/- 10 V AC, 50 Hz, single phase, with earthing |
| Sockets | 5 A three-pin with switch for weighing scale; 15 A three-pin with switch for heater |
| Test material | Sawdust, 1 kg |
| Chamber size and heater rating | Confirmed on the quotation |
Experiments with the natural draft tray dryer
The dryer is used to record the weight of a wet solid against time under natural draft, and to identify the constant-rate and falling-rate periods of drying.
- Drying curve of a wet solid under natural draft
- Constant-rate and falling-rate periods
- Critical moisture content
- Comparison with forced draft drying
Scope of supply and ordering
The listing covers the Natural Draft Tray Dryer with its support table and 1 kg of sawdust. The weighing scale and heater details are confirmed on the quotation.
Frequently asked questions
What drives the air flow?
Natural draft: the hot air stream rises through the dryer without a fan.
What supply is needed?
Single-phase 230 +/- 10 V AC, 50 Hz, with properly earthed 5 A and 15 A sockets.
What test material is supplied?
1 kg of sawdust.
