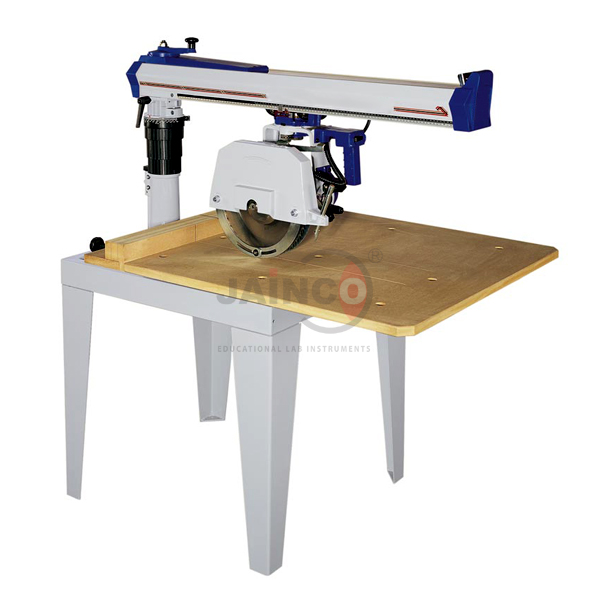

Radial Cross Cutting Machine
Product Code : JA-WWPT-8712
The radial cross cutting machine is a heavy radial saw for cross-cutting and trimming timber in joinery workshops. It is listed with a 4.5 HP motor at 2900 rpm, 12-inch (305 mm) or 14-inch (355 mm) blades on a 1-inch (25.4 mm) bore, a head that swivels 0 to 180° and tilts 0 to 90°, 860 mm trimming width and 620 mm cross-cutting length on a 900 x 1100 mm table (SKU JA-WWPT-8712).
Specifications
Listed specification:
| Product | Radial Cross Cutting Machine |
| SKU | JA-WWPT-8712 |
| Motor | 4.5 HP, 2900 rpm |
| Blade diameter | 12 inch (305 mm) or 14 inch (355 mm) |
| Spindle bore | 1 inch (25.4 mm) |
| Head swivel | 0 to 180° |
| Head tilt | 0 to 90° |
| Maximum trimming width | 860 mm |
| Maximum cross-cutting length | 620 mm |
| Table area | 900 x 1100 mm |
| Rail bearings | 8 |
| Machine size | 1120 x 1100 x 1170 mm |
| Net weight | 200 kg |
Scope of supply and ordering
The listing covers one radial cross cutting machine, supplied by JaincoLab.
Frequently asked questions
Which blade sizes does it take?
12-inch (305 mm) or 14-inch (355 mm) blades on a 1-inch bore.
How far does the head swivel and tilt?
It swivels from 0 to 180° and tilts from 0 to 90°.
