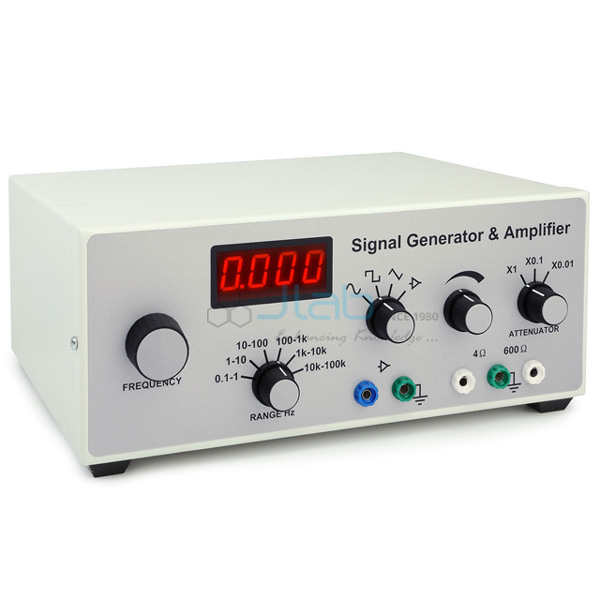

Signal Generator and Amplifier

Signal Generator and Amplifier

Product Code : JA-SW-7646

Signal Generator and Amplifier
Description:
Electrical Supply: 220-240VAC, 50-60Hz
Mass : 3.2kg
Dimensions : 255 x 220 x 110mm overall
Sig. Gen. Mode:-
Waveforms: Sine, Square & Triangular, sinewave distortion 1% on all ranges, square wave rise time 1µs approx.
Frequency Range : 0.1Hz to 100kHz in six ranges, accuracy ±5% on all ranges
Voltage Output : 0 to 10V (peak to peak), continuously variable across all ranges & waveforms
4Ω Output : Power output of 4W over entire frequency range & waveforms, will drive loudspeaker or other suitable devices
600Ω Output : Provides attenuation settings: x 1, x 0.1 & x 0.01, all ±5%
Amplifier Mode :-
Performance : Voltage gain 0 to 100, Input impedance 1MΩ, Max. input 200mV (peak to peak), Output spec. same as above Frequency Response : Frequency response 1Hz to 100kHz.
