Tubes And Air Inlets, Bent With Cone
Product Code : JA-TTATP-1696

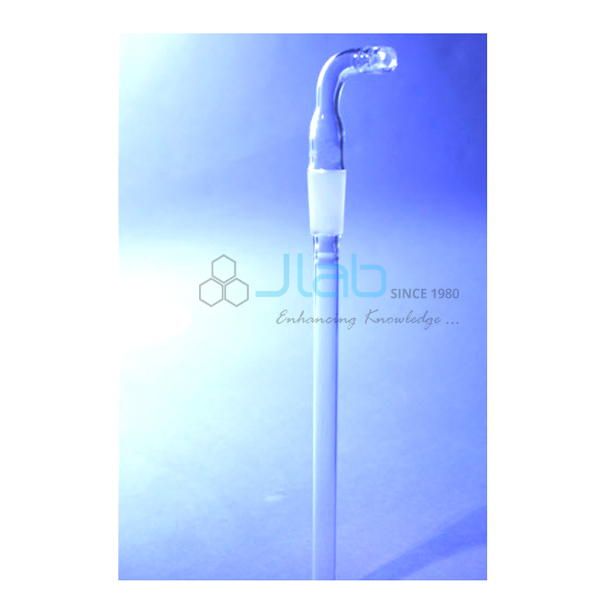

Tubes And Air Inlets, Bent With Cone (product code JA-TTATP-1696) are glass inlet tubes that fit into the neck of a flask through a ground-glass cone. The 150 mm stem reaches down into the flask to deliver gas or air below the liquid surface, and the outer end of the bent air inlet tube turns to the side so tubing can be connected without obstructing other necks. Three cone sizes are listed, B14, B19 and B24, for teaching and research laboratories.
Specifications
The inlet tubes have a ground-glass cone, a 150 mm stem and a bent outer end for tubing, listed in B14, B19 and B24 cone sizes. A straight version with a 100 mm stem is listed separately.
| Product | Tubes And Air Inlets, Bent With Cone |
| SKU / Product code | JA-TTATP-1696 |
| Type | Tube and air inlet, bent, with cone |
| Stem length | 150 mm |
| Cone sizes | B14, B19, B24 |
Applications of the bent air inlet tube
Inlet tubes are used to bubble gas through a liquid or to sweep a flask with inert gas during a reaction or distillation.
- Bubbling nitrogen or another gas through a reaction mixture
- Passing a gas into a solution to saturate it
- Admitting a controlled air bleed during vacuum distillation
- Organic and inorganic chemistry practicals in colleges
Scope of supply
The listing covers bent tubes and air inlets with cone in the sizes and quantities you order. Tubing, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are confirmed on each quotation for quantity and destination. JaincoLab supplies single laboratories, bulk orders for colleges and institutes, and export shipments to Africa, the Middle East and South and South-East Asia.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
Which cone sizes are listed?
B14, B19 and B24, all with a 150 mm stem.
Why is the outer end bent?
It turns the tubing connection to the side, clear of other necks and fittings.
Is a straight version available?
Yes. Tubes and Air Inlets, Straight With Cone are listed with a 100 mm stem from B10 to B29.
What should a quotation request include?
Send the product code JA-TTATP-1696, the cone sizes and quantity of each, and the delivery destination.
