Tubes and Air Inlets, Straight With Cone
Product Code : JA-TTATP-1697

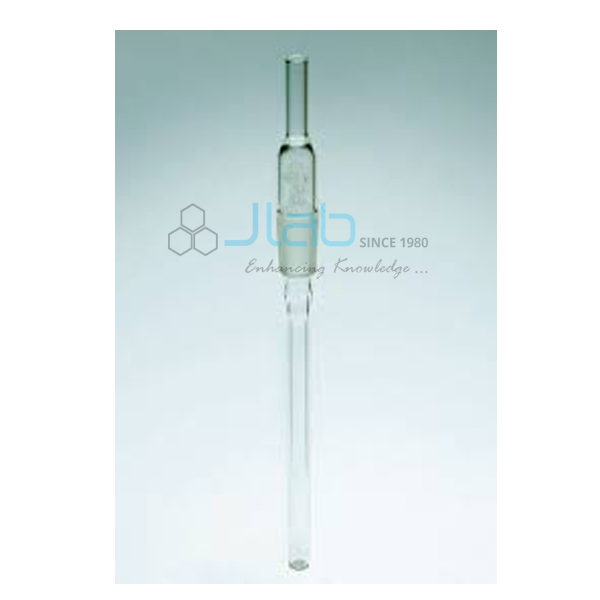

Tubes and Air Inlets, Straight With Cone (product code JA-TTATP-1697) are straight inlet tubes for jointed glassware. The ground-glass cone seats in a flask neck, the 100 mm stem carries gas or air down into the flask, and the straight gas inlet tube takes tubing at its upper end. Five cone sizes are listed, from micro-scale B10 to B29, for chemistry teaching and research laboratories.
Specifications
The inlet tubes have a ground-glass cone and a straight 100 mm stem, listed in five cone sizes, B10, B14, B19, B24 and B29. The bent version with a 150 mm stem is listed separately in B14 to B24.
| Product | Tubes and Air Inlets, Straight With Cone |
| SKU / Product code | JA-TTATP-1697 |
| Type | Tube and air inlet, straight, with cone |
| Stem length | 100 mm |
| Cone sizes | B10, B14, B19, B24, B29 |
Applications of the straight gas inlet tube
Straight inlets are used where the tubing can come in from directly above, for example on the centre neck of a flask or in a vertical set-up.
- Supplying inert gas to a reaction flask
- Bubbling a gas through a solution in micro-scale work with B10 or B14 flasks
- Admitting an air bleed during reduced-pressure distillation
- Gas-absorption and preparation experiments in college practicals
Scope of supply
The listing covers straight tubes and air inlets with cone in the sizes and quantities you order. Tubing, accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are confirmed on the quotation for quantity and destination. JaincoLab supplies single laboratories, bulk orders for colleges and institutes, and export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which cone sizes are listed?
B10, B14, B19, B24 and B29, all with a 100 mm stem.
How is it different from the bent version?
The straight tube takes tubing from directly above. The bent version turns the connection to the side and has a 150 mm stem.
Can it be used for an air bleed in vacuum distillation?
Yes. Inlet tubes of this kind are used to admit a small, controlled bleed of air or gas.
What should a quotation request include?
Send the product code JA-TTATP-1697, the cone sizes and quantity of each, and the delivery destination.
Related products
Other items in the same category:
See the full Test Tubes and Thermometer Pockets category, part of the range from JaincoLab, a laboratory glassware manufacturer in India.
Request a quote
To order Tubes and Air Inlets, Straight With Cone, send the cone sizes, quantities and delivery destination through the JaincoLab contact page or email [email protected].
